Event Filtering Configuration Window

Use the Event Filtering Configuration window to exclude specific Active Directory and Authentication events from being monitored. You can set a latency threshold to generate alerts for AD events.

note

This window is only available to Threat Prevention administrators.

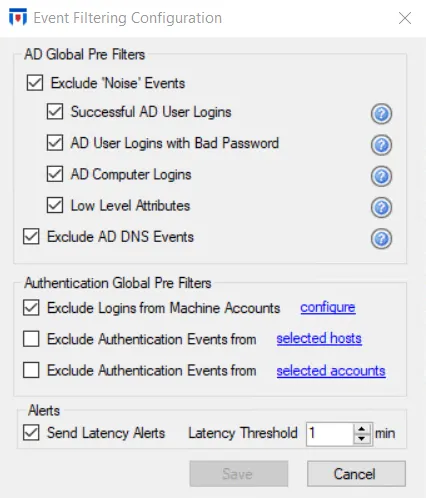

Step 1 – Click Configuration > Event Filtering on the menu to open the Event Filtering Configuration window.

Step 2 – The filter options are grouped by AD Global Pre Filters, Authentication Global Pre Filters, and Alerts. Check the checkboxes to activate the filters and click Save.

To disable a filter for diagnostic purposes, uncheck its checkbox and click Save.

Click the Help icon (?) for an option in the AD Global Pre Filters area to view the type of “noise” events being filtered.

note

All Authentication Global Pre Filters options require configuration before they can be enabled.

info

Enable all the AD Global Pre Filters options as well as the Exclude Logins from Machine Accounts option in the Authentication Global Pre Filters section.

When activated, the Agent filters out the event data according to configurations defined in the filters.json file located in the installation directory of the Enterprise Manager.

Exclude ‘Noise’ Events Option

The Exclude ‘Noise’ Events option is enabled by default to filter out login and internal low level attributes that can be considered ‘noise’ events, which bloat the database. You can scope this option to include any combination of the following ‘noise’ events:

• Successful AD User Logins – Excludes events with the following attributes where ‘objectClass’ does not equal computer:
  • logonCount
  • lastLogon
  • badPwdCount
  • lastLogonTimestamp
• AD User Logins with Bad Password – Excludes events with the following set of attributes where ‘objectClass’ doesn't equal computer:
  • badPwdCount
  • badPasswordTime
• AD Computer Logins – Excludes events with the following set of attributes where ‘objectClass’ equals computer:
  • logonCount
  • lastLogon
  • badPwdCount
  • lastLogonTimestamp
  • badPasswordTime
  • badPwdCount
• Low Level Attributes – Excludes the following attributes from event:
  • ImPwdHistory
  • dBCSPwd
  • ntPwdHistory

Exclude AD DNS Events Option

The Exclude AD DNS Events option is enabled by default to filter out DNS events. These events can bloat the database. They must meet both of the following conditions to be excluded:

• objectClass = ‘dnsNode’ or ‘dnsZone’
• Contains the ‘dnsRecord’ or ‘dNSTombstoned’ attribute

When the Exclude AD DNS Events checkbox is unchecked, DNS record events are displayed in a human-readable format on the Recent Events tab of the Active Directory policy. To search these results, set Affected Object: Class to equal dnsNode so the dnsRecord attribute displays.

Exclude Logins from Machine Accounts Option

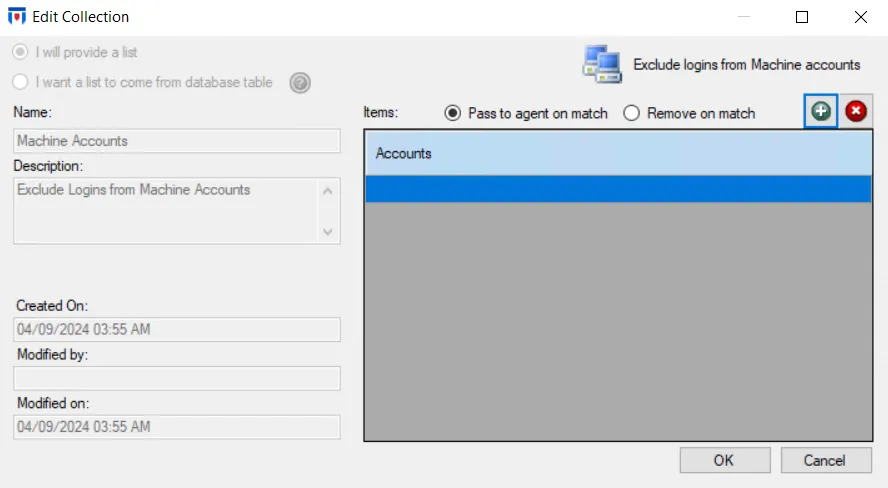

The Exclude Logins from Machine Accounts option is enabled by default to filter out machine logins. These events can bloat the database. Click the configure link to open the Edit Collection window.

The Exclude Logins from Machine Accounts collection is only accessible through the Event Filtering Configuration window. Either use the Add (+) button to open the Select Active Directory Perpetrators Window to browse for machine accounts or enter the account name in the textbox.

Only perpetrators with accounts ending in “$” are considered for this filter. Use wild cards (*) for partial matches to account names.

All machine accounts in the textbox are either included or excluded from event data monitoring by the Agent. Machine accounts not in the list have the unselected property applied.

Select one of the following radio buttons to apply to the list of account names:

• Pass to agent on match – Included and passed to the Agent for event data monitoring. Machine accounts not in the list are excluded and ignored by the Agent.
• Remove on match – Excluded and ignored by the Agent. Machine accounts not in the list are included and sent to the Agent for event data monitoring.

Repeat the process until you've entered all machine accounts to include or exclude from Authentication event data. Then click OK.

Usage Tip

Windows Server 2012 introduced group Managed Service Accounts (gMSA). gMSA accounts include “$” in their names, so by default Threat Prevention filters out authentication traffic generated by these accounts because they ‘look’ like machine accounts, which before Server 2012 were the only account names ending in “$”. The ability in Threat Prevention to add a list of filter strings to the “Exclude Logins from Machine Accounts” global filter lets you capture activity by gMSA type accounts as this activity is typically of interest whereas true ‘machine accounts’ aren't. Supplying either an explicit list of gMSA account names or, if a naming convention exists, a set of wild card strings such as “gMSA*” or “svc*” lets you capture authentication activity from such accounts while ignoring the noisy ‘machine accounts’.

Exclude Authentication Events from Selected Hosts Option

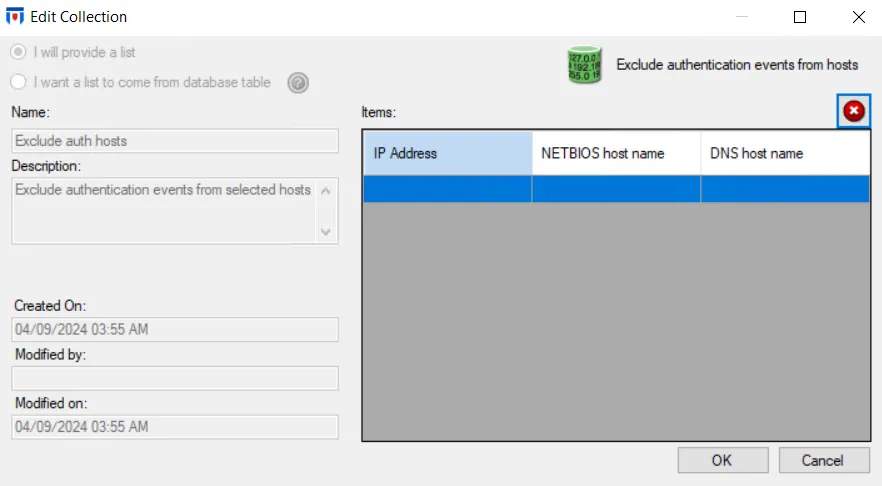

The Exclude Authentication Events from Selected Hosts option is disabled by default as it requires configuration before it can be enabled. Click the selected hosts link to open the Edit Collection window.

The Exclude Authentication Events from Hosts collection is only accessible through the Event Filtering Configuration window. All three methods of identification for a host (IP address, NETBIOS host name, or DNS host name) must be known to effectively exclude authentication from the host. Identify the host to exclude in the textbox under the IP Address column and press Enter or select the next row in the grid. Threat Prevention attempts to discover the NETBIOS host name and the DNS host name associated with the supplied IP address. If the host identification isn't resolved or is inaccurate, manually enter the information.

Repeat the process until you've entered all hosts for which Threat Prevention won't collect authentication event data. Then click OK. The Edit Collection window closes, and the Exclude Authentication Events from selected hosts option can be enabled.

Exclude Authentication Events from Selected Accounts Option

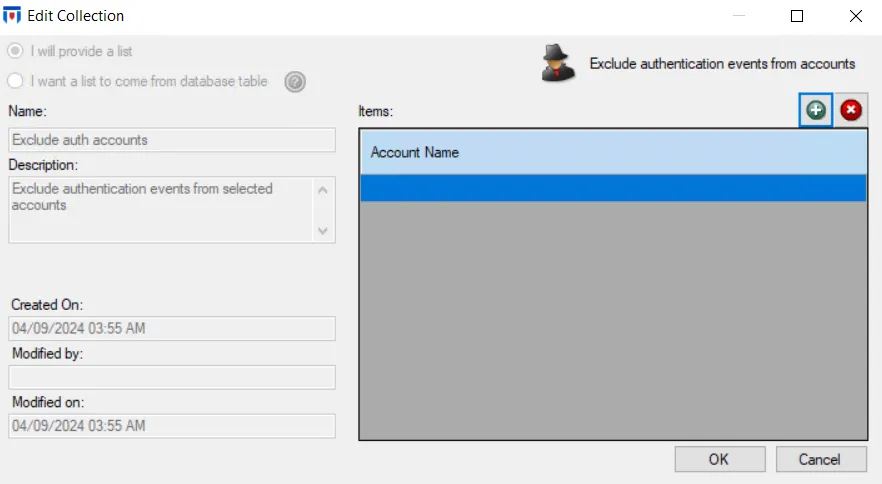

The Exclude Authentication Events from Selected Accounts option is disabled by default as it requires configuration before it can be enabled. Click the selected accounts link to open the Edit Collection window.

The Exclude Authentication Events from Selected Accounts collection is only accessible through the Event Filtering Configuration window. Use the Add (+) button to open the Select Active Directory Perpetrators Window to browse for the accounts. Account names [domain name\account] can also be typed in the textbox. Wild cards (*) can be used as part of either the domain name or account. An asterisk (*) appearing anywhere other than as the first or last character is treated as a literal character instead of as a wild card. For example: *\Service1 would exclude all Service1 accounts whether it is a domain or local account, and Example\Service* would exclude all accounts that start with “Service” for the Example domain.

Repeat the process until you've entered all accounts to exclude from Authentication event data. Then click OK. The Edit Collection window closes, and the Exclude Authentication Events from selected accounts option can be enabled.

AD Events Latency Threshold Option

The Send Latency Alerts option is disabled by default. It generates alerts if the time delay between when the Agent detects an AD event and the time the Enterprise Manager receives it exceeds the specified latency threshold. This option is helpful for troubleshooting when experiencing slow connection in the environment. These events can bloat the database, especially if you set the latency threshold too low.

Select the Send Latency Alerts checkbox to enable this option. Use the arrows, or enter into the textbox, to set the latency threshold in minutes for the time when the Agent detects the event and the Enterprise Manager receives it. When events exceed the timeframe, alerts appear in the Alerts Interface. To generate email or SIEM alerts, select the Agent Latency checkbox on the Operations tab of the System Alerting Window.
