Bring Your Own Vault (BYOV) Integration

Privilege Secure contains a built-in vault for credential management, but can integrate with vaults from other vendors using the Bring Your Own Vault® (BYOV) integration.

Add a Vault Connector for BYOV​

Follow the steps to add the BYOV Connector.

Step 1 – Navigate to the Configuration > Integration Connectors page.

Step 2 – In the Integration Connectors list, click the Add Integration Connector icon.

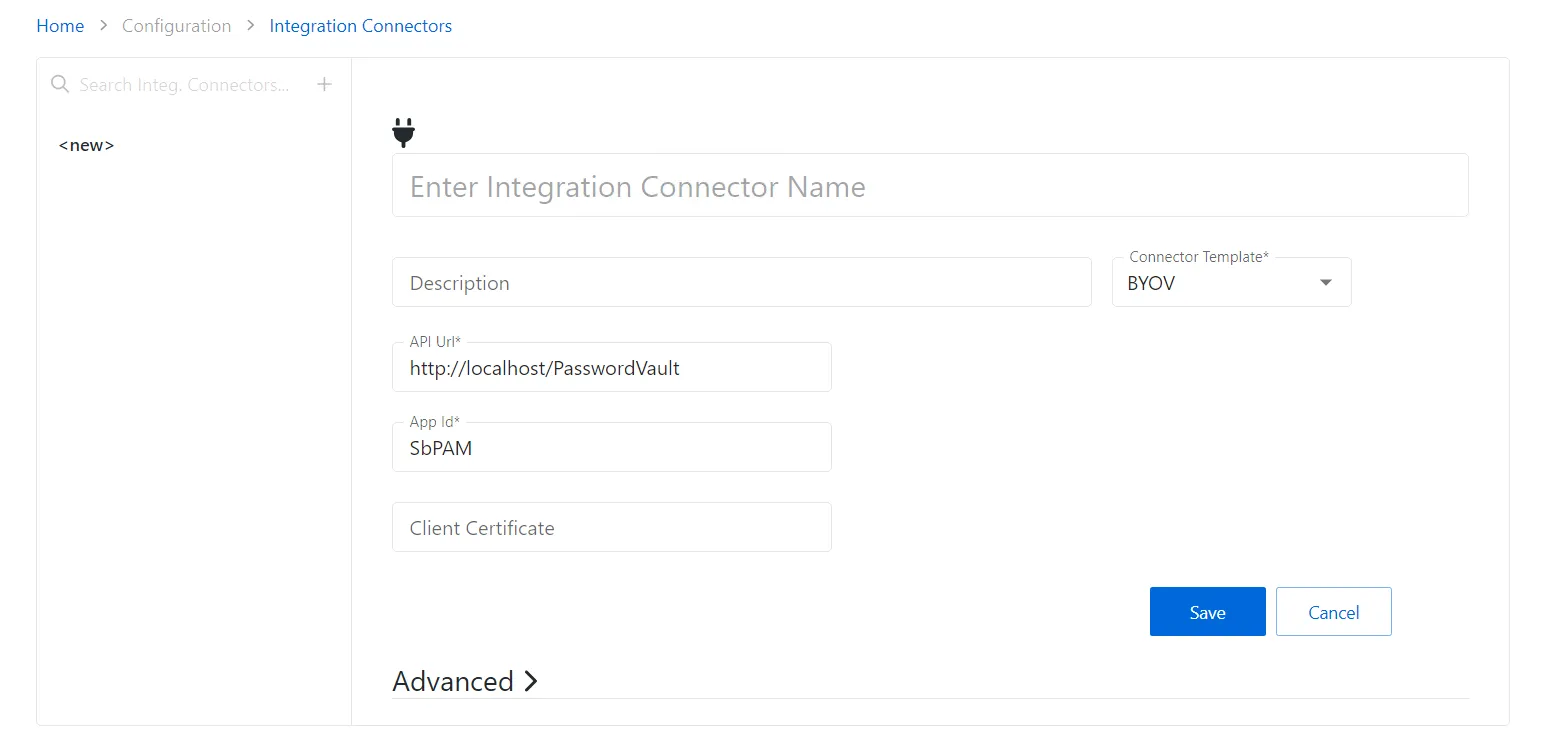

Add Build your own vault Connector Integration

Step 3 – Enter the following information:

  • Connector Name – Enter a name to uniquely identify the connector
  • Connector Description (Optional) – Enter a brief description to identify the service account
  • Connector Template – A selection of templates for connector configurations. Select BYOV from the drop-down list.
  • API Url – The base URL for the API being used for the vault integration. Ex: https://localhost/PasswordVault.
  • App ID – The application ID for the vault
  • Client Certificate – The base 64 string from the certificate file being used to authenticate to the vault
  • Advanced – Use this section to override the default behavior of the connector by providing a custom PowerShell script. Click on the Advanced section to edit the Checkout Script Block and the Checkin Script Block or Skip the Certificate Check.

Step 4 – Click the Save icon to create the new integration connector.

The Build Your Own Vault has been configured.
