Dependency Relationship Diagram

Platform Governance for Salesforce's Dependency Relationship Diagram (DRD) displays objects, customizations and their relationships and dependencies including scripts, reports and workflows in a graphical diagram.

To use the entity diagram:

  1. Open Netwrix Dashboard > Tools > Dependency Relationship Diagram
  2. Select the object to view.
  3. The diagram displays the object and customizations under it. Use Show/Hide Standard Fields to toggle the display of Standard Fields for easier searching of non-standard fields.
  4. Click on any item to expand the graphical representation of objects, dependencies and associated relationships. If there are more than 10 entries, a Next option is available at the end to expand the results. Next loads the next 10 entries, Back loads the previous list.
  5. Click Open Record to open the customization record for the item.

entity_diagram

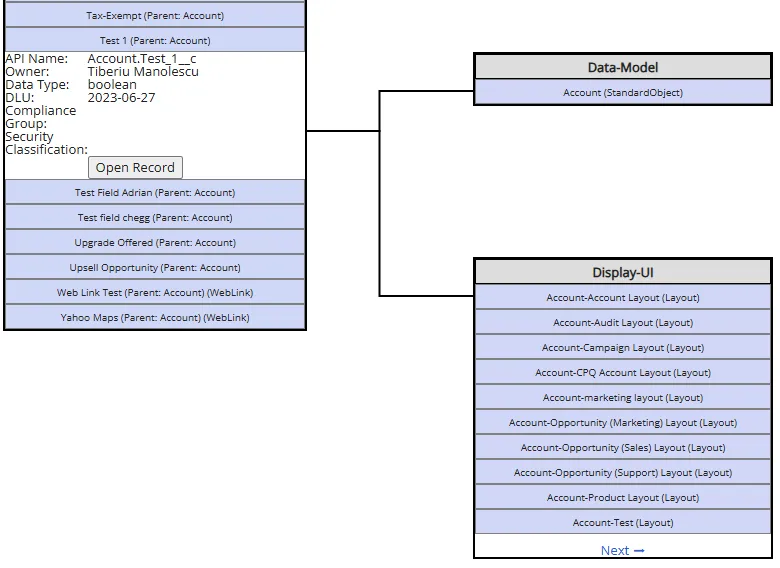

Here is an example showing the Next feature for Account (StandardObject) > Test 1 (Parent:Account).

DRD entry showing Next option if there are more than 10 entries
