Configuring the Password Policy Client

The Password Policy Client is self-configuring and does not require manual configuration in most cases. You may need to manually configure the Password Policy Client if:

  • You want to install it in a disabled state to be enabled later.
  • You want to change the display settings for small screens.
  • The Password Policy Client displays policy messages in the wrong language.
  • The default communication settings are not suitable (for example, if you change the default Password Policy Server Port).

Password Policy Enforcer includes an administrative template to help configure the Password Policy Client. You can use Active Directory GPOs to configure many computers, or the Local Group Policy Editor to configure one computer. The Password Policy Client configuration is stored in the HKLM\SOFTWARE\Policies\ANIXIS\Password Policy Client\ registry key.

Install the Password Policy Client Administrative Template

Step 1 – Connect to any Domain Controller where you have Password Policy Enforcer installed and have the group policy management console available.

Step 2 – Go to Password Policy Enforcer install directory (C:\Program Files (x86)\Password Policy Enforcer) and copy the following two files (highlighted in yellow):

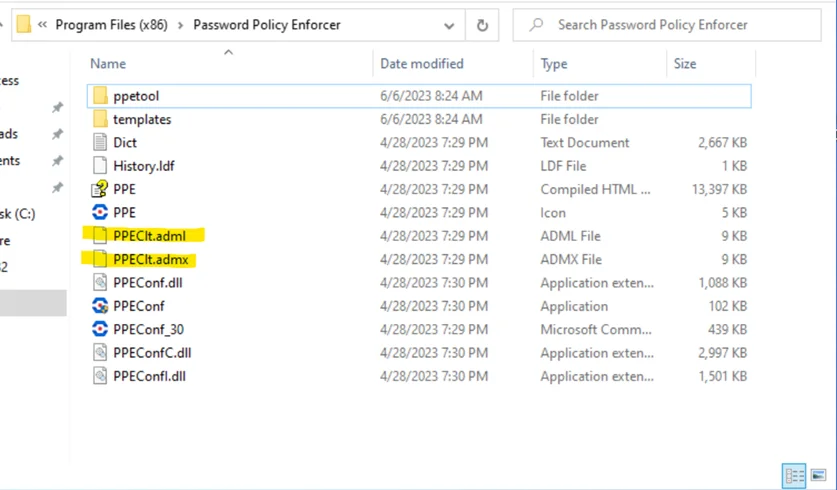

ppc_configuration

Step 3 – Go to C:\Windows\Policy Definitions and paste the .admx file in the root of this folder.

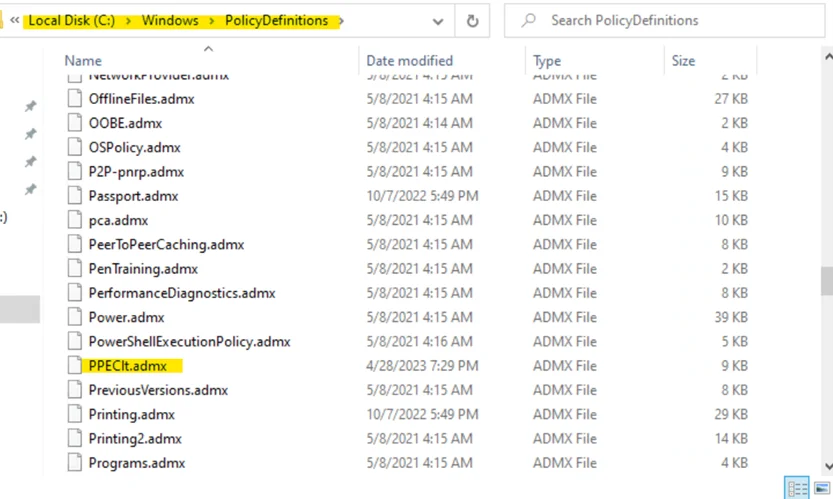

ppc_configuration2

Step 4 – Go to C:\Windows\Policy Definitions\en-US and paste the .adml file in the root of this folder.

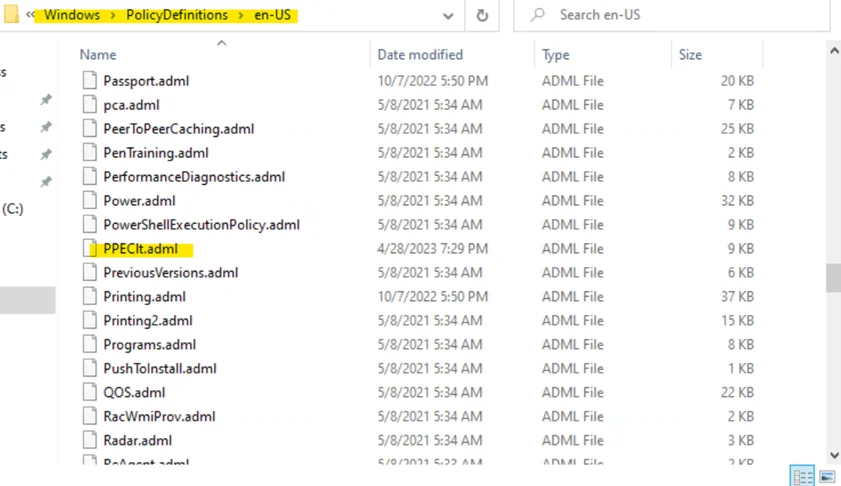

ppc_configuration1

Step 5 – Open Group Policy Management console and check if you have a GPO created for Client. If not, see the Installing Password Policy Client topic's Edit the Group Policy Object section for additional information.

Step 6 – In the left pane, navigate to Forest: <forest_name> > Domain > <domain_name>, right-click <OU_name> and select Create a GPO in this domain and Link it here.

Once the GPO was configured, it will have the following view:

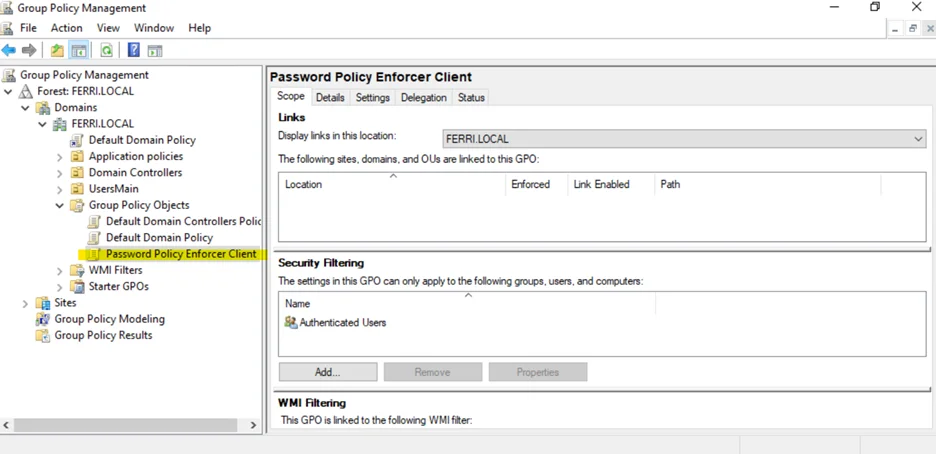

ppc_configuration3

Step 7 – Right-click the newly created GPO and select Edit from the pop-up menu.

Step 8 – Expand Computer Configuration > Policies > Administrative Templates > Netwrix Password Policy Enforcer

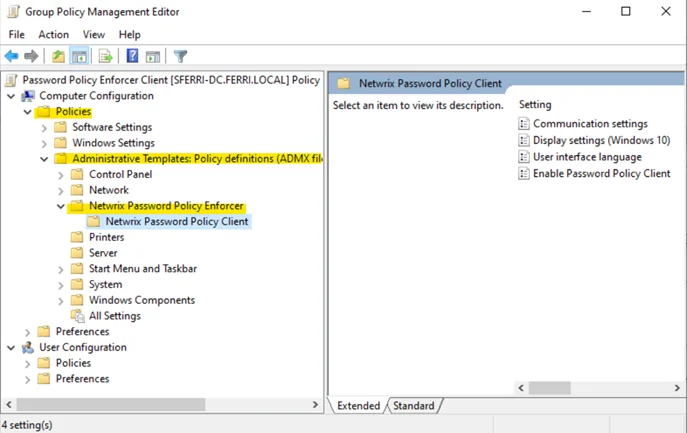

ppc_configuration4

Step 9 – Click on Netwrix Password Policy Client to open a list of modification settings with brief descriptions of each.

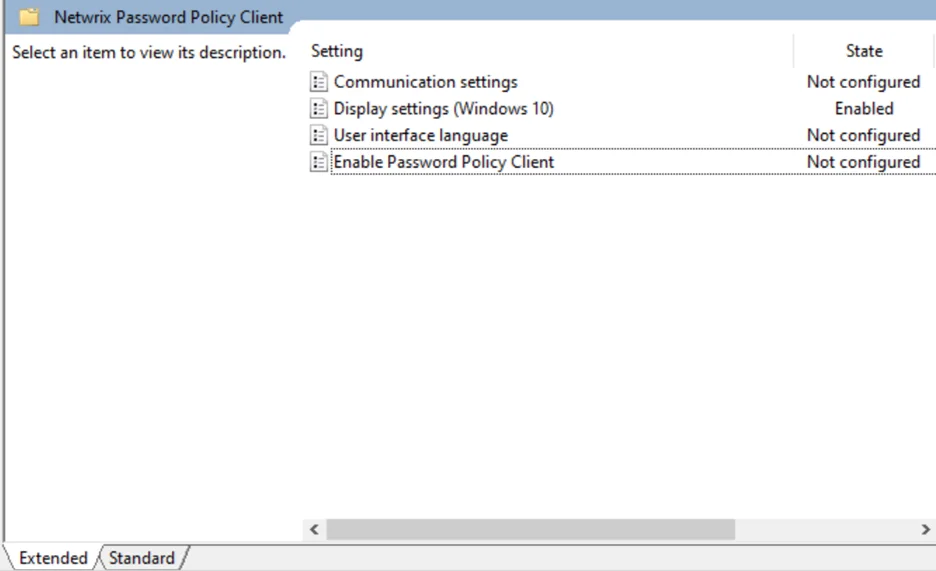

ppc_configuration5

Step 10 – Select the one you need, then modify and save it.

Changing the Default Display Settings​

The Windows 10 and 11 Change Password screen has less space for the Password Policy message than earlier Windows versions. Users may need to scroll to see the message if their screen is small, or if their computer is set to use large fonts.

The Password Policy Client for Windows 10 and 11 maximizes the available screen space by hiding non-essential user interface elements on small screens. It can also display the Password Policy message in a message box to draw attention to the password policy.

the_password_policy_client_3

You can change the default display settings to control which user interface elements are hidden, and the point at which they are hidden. The display of the Password Policy message box is also configurable.

Follow the steps below to change the default display settings for the Password Policy Client on Windows 10 and 11.

Step 1 – Use the Group Policy Management Console (gpmc.msc) to display the GPOs linked at the domain level.

NOTE: If you are not using Active Directory, then open the Local Group Policy Editor (gpedit.msc) and skip step 2.

Step 2 – Right-click the Password Policy Client GPO, then click the Edit... button.

Step 3 – Expand the Computer Configuration, Policies (if visible), Administrative Templates, Classic Administrative Templates (ADM), Password Policy Enforcer, and Password Policy Client items.

Step 4 – Double-click the Display settings (Windows 10) setting in the right pane of the Group Policy Management Editor.

NOTE: Information about each option is shown in the Help box.
