How to Set Up Single Sign-On via Microsoft Entra ID Authentication

Question​

How can you set up single sign-on (SSO) for Netwrix Data Classification (NDC) via Microsoft Entra ID authentication (formerly Azure AD)?

IMPORTANT: The Netwrix Data Classification and Netwrix Auditor integration (NDC Provider) currently does not support single sign-on (SSO). SSO needs to be disabled in Netwrix Data Classification for the account used by the NDC Provider to authenticate. For up-to-date information on the NDC Provider integration, refer to the following documentation article: https://docs.netwrix.com/docs/auditor/10_8 Data Discovery — Permissions for Integration with Netwrix Data Classification · v10.6).

Answer​

Register Netwrix Data Classification (NDC) in the Azure Portal​

  1. Assign a certificate to the default website where NDC is hosted.

  2. Make sure that the NDC Administration Console is accessible in your browser (for example, https://classification.contoso.com/NDC).

  3. Add your Microsoft Entra account as a Superuser:

    1. On the main NDC screen, select Settings.
    2. Select the Users tab, and click Add user.

    NOTE: Make sure to check the Superuser checkbox.

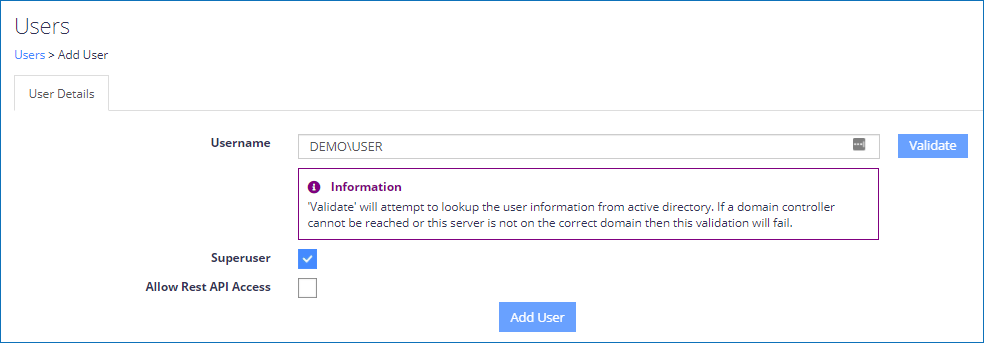

    Add user Superuser screenshot

  4. Visit the App registrations menu in your Microsoft Azure Portal to register an application: https://portal.azure.com/#view/Microsoft_AAD_IAM/ActiveDirectoryMenuBlade/~/RegisteredApps

    1. In the upper navigation bar, click New registration.
    2. In the Redirect URI section, select Web in the dropdown menu and enter the Administration Console URL in the corresponding field (for example, https://classification.contoso.com/NDC).
    3. Click Register to save your changes.
    4. Copy the Application (Client) ID of the newly created application.
    5. Select your application and open the Authentication tab in the left pane.

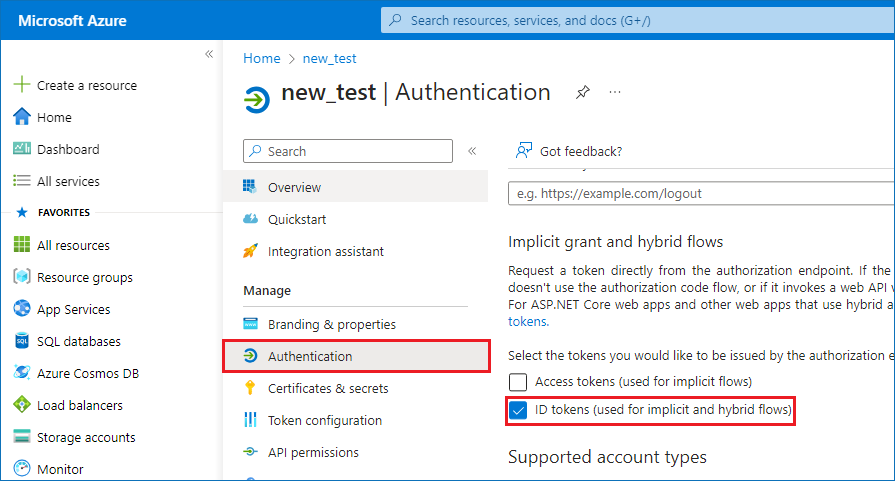

    Authentication tab screenshot

    1. Check the ID tokens (used for implicit and hybrid flows) checkbox and click Save.

  5. Back up the web.config file in the NDC IIS folder (located in C:\inetpub\wwwroot\NDC by default). You can check your actual NDC IIS folder path by right-clicking the NDC node under Default Web Site in IIS and selecting Explore.

  6. Edit the original web.config file from the NDC IIS folder to add the following lines to the <appSettings> node:

<add key="ida:AzureClientId" value="Application (Client) ID"/>
<add key="ida:AzureAuthority" value="https://login.windows.net/tenantname.onmicrosoft.com"/>
<add key="ida:AzureTenant" value="tenantname.onmicrosoft.com"/>

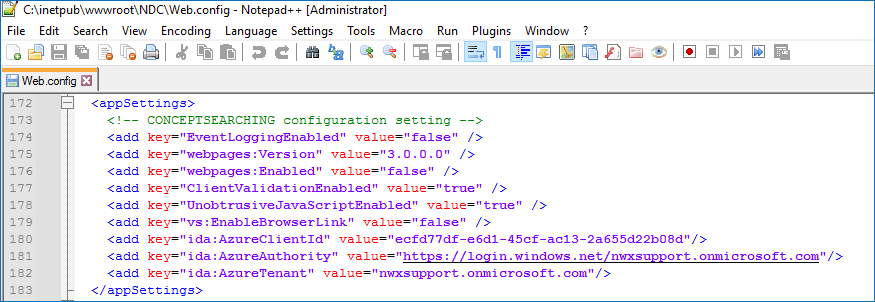

web.config snippet screenshot

NOTE: Replace the Application (Client) ID with the one copied previously and the tenantname.onmicrosoft.com with your tenant's name.

  1. Close all your browser windows and then open the NDC Administration Console (for example, https://classification.contoso.com/NDC).
  2. NOTE: In a DQS environment, steps 5 and 6 must be completed on each server NDC is installed on before proceeding to step 7.

NOTE: If you have previously configured the application to use ADFS, refer to the following steps:

  1. On the main NDC screen, select Settings.
  2. Select the Users tab, select all users, and select Delete.
  3. Open the web.config file (located in C:\inetpub\wwwroot\NDC by default) and remove appSettings entries specific to ADFS:
ida:ADFSMetadata
ida:Wtrealm

Make a REST API call using Bearer Auth​

When using NDC REST APIs with Microsoft Entra authentication, the first step is to retrieve a bearer token. Each API call should include the bearer token as its method of authentication. The code snippet provided below (C#) uses RestSharp to connect to Microsoft Entra ID and retrieve a bearer token to be used with REST APIs:

var tenancy = "conceptsearching.com";
var clientId = "NewAzureADClientID (GUID)";
var clientSecret = "";
var username = "developer%40conceptsearching.com";
var password = "";

var client = new RestClient($"https://login.microsoftonline.com/{tenancy}/oauth2/token");
var request = new RestRequest(Method.POST);
request.AddHeader("Cache-Control", "no-cache");
request.AddHeader("Content-Type", "application/x-www-form-urlencoded");
request.AddParameter("undefined", $"grant_type=password&username={username}&password={password}&client_id={clientId}&resource={clientId}&client_secret={clientSecret}", ParameterType.RequestBody);
IRestResponse response = client.Execute(request);

The access_token value from the response should be included in each subsequent request via REST APIs as a header variable in the following format:

Key: Authorization
Value: Bearer YOURTOKEN
