Workflow Create Entity Form

Displays a form to create a new resource, without a record.

Examples

The following example is a form to create a new site.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<WorkflowCreateEntityForm Identifier="Workflow_Directory_Site_Create" EntityType="Workflow_Directory_Site" MainProperty="Workflow_Directory_Site:Directory_Site" WorkflowRequestType="Self" Activity="Directory_Site_Create:Request" FormTitle_L1="New Site">
    <MainControl OutputType="TransformImport" EmbeddedForm="Base_Directory_Site" />
    <SummaryControl OutputType="TransformImport" EmbeddedForm="Summary_Directory_Site"/>
</WorkflowCreateEntityForm>
With the following form for the workflow's content:
<Form Identifier="Base_Directory_Site" EntityType="Directory_Site">
    <Control DisplayName_L1="Address" OutputType="LayoutFieldset" Name="Address">
        <Control Binding="Name" />
        <Control Binding="StreetNumber" />
        <Control Binding="StreetName" />
        <Control Binding="StreetType" />
        <Control Binding="Floor" />
        <Control Binding="PostalCode" />
        <Control Binding="City" />
        <Control Binding="Region" />
        <Control Binding="Region.Country" IsReadOnly="true" />
        <Control Binding="Photo" OutputType="Image" />
    </Control>
    <Control DisplayName_L1="Additional Data" OutputType="LayoutFieldset" Name="Additional Data">
        <Control Binding="Identifier" />
        <Control Binding="DisplayName" />
        <Control Binding="TimeZone" />
    </Control>
</Form>
And with the following form for the workflow's summary:
<Form Identifier="Summary_Directory_Site" EntityType="Directory_Site">
    <Control DisplayName_L1="Address" OutputType="LayoutFieldset" Name="Address">
        <Control Binding="Name" />
        <Control Binding="StreetNumber" />
        <Control Binding="StreetName" />
        <Control Binding="StreetType" />
    </Control>
    <Control DisplayName_L1="Additional Data" OutputType="LayoutFieldset" Name="Additional Data">
        <Control Binding="Identifier" />
        <Control Binding="DisplayName" />
    </Control>
</Form>

The content of MainControl is visible during the workflow's execution:

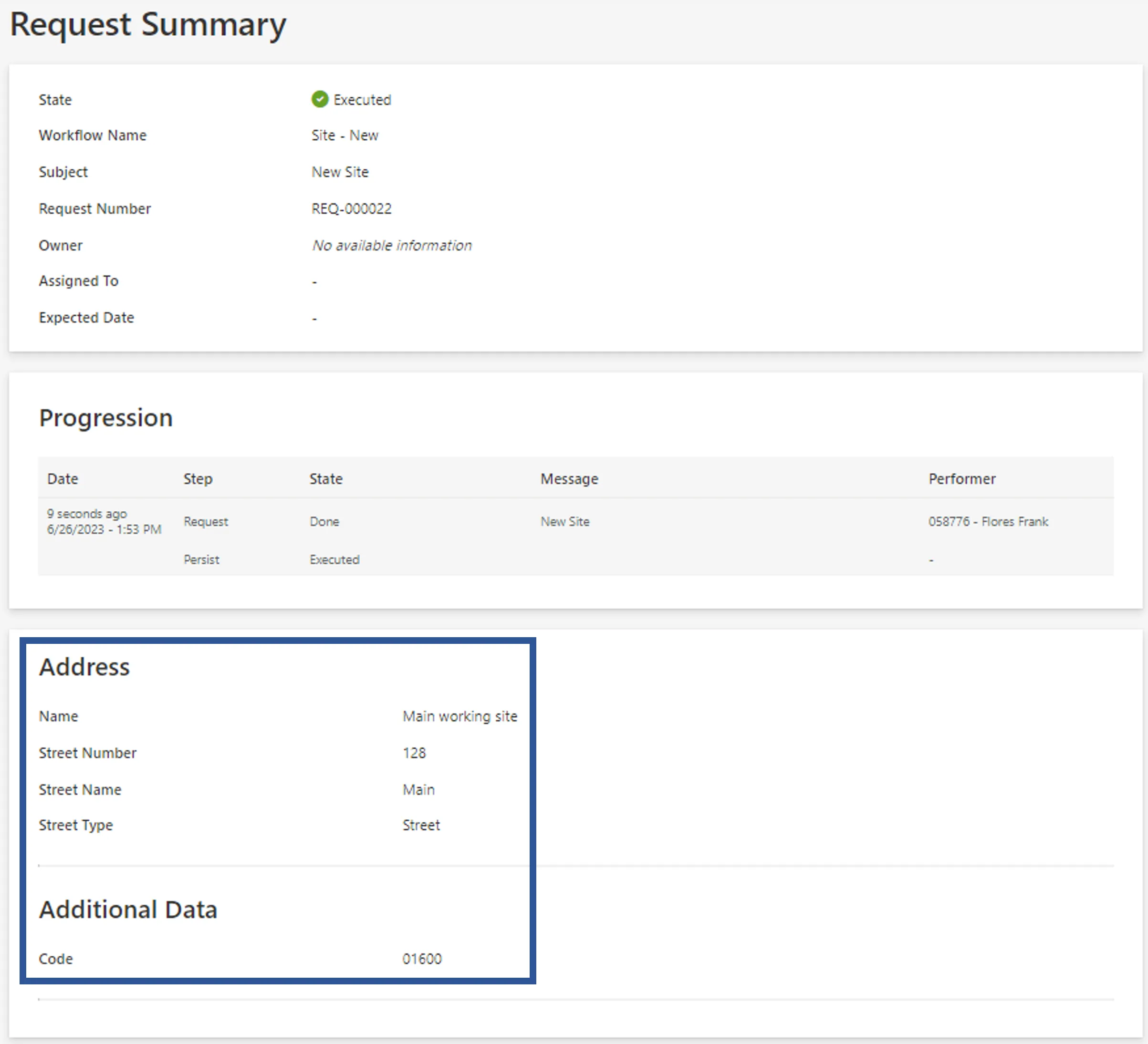

The content of SummaryControl is visible after the workflow's execution:

Properties

Property	Description
Child Element: MainControl	Set of fields to collect data about the main resource.
Child Element: SummaryControl	Set of fields to sum up the collected data after the workflow's execution.
