Create a Composite Role

How to define composite roles in order to create sets of single roles easy to assign.

Overview

A composite role is a set of single roles that are usually assigned together, because they revolve around the same application, or the same job, etc. Composite roles are aggregates of single roles, they can help organize the role catalog.

A composite role is a business role comprehensible by managers. It provides an additional layer of abstraction above existing entitlements and single roles. We can say that if a single role allows a user to perform a task, a composite role allows them to perform a job.

Composite roles and Role Mining

Composite roles can also be created based on the rules provided by Role Mining. Rules link roles to dimensions.

The following example shows single roles from A to F. Role Mining suggested the rules on the schema, linking these single roles to the organizations R&D and Project as well as to the functions developer, writer, contractor and project manager. The idea is to use these rules to create composite roles. Here, we clearly have one role for R&D-developer, one for R&D-writer, Project-contractor and Project-project manager. Thus, it is clear here that composite roles add an abstraction layer.

Single role rules link composite roles to single roles: a single role rule states that specific single roles are assigned according to specific criteria, particularly composite roles. Thus, a composite role assignment can imply specific single role assignments.

Participants and Artifacts

For a given managed system, integrators may need the help of the application owners who know the application's users, entitlements and data model.

Input	Output
Role catalog (required)	Composite roles

Create a Composite Role

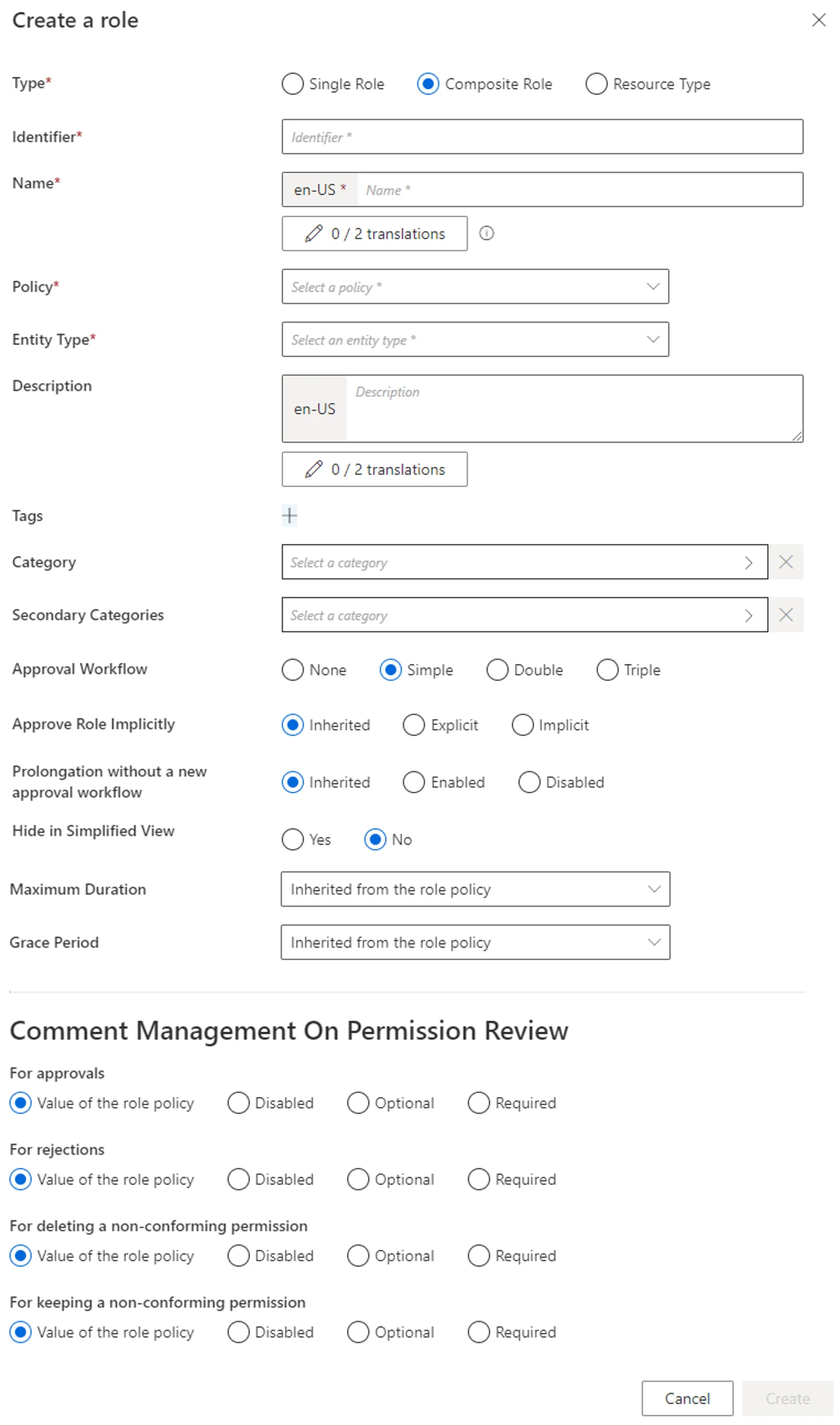

Create a composite role by proceeding as follows:

1. On the home page in the Configuration section, click on Access Roles to access the roles page.



2. On the roles page, click on the adequate category and create a role by clicking on + New at the top right corner.

3. Fill in the fields.



   • Identifier: must be unique among roles and without any whitespace.
   • Name: will be displayed in the UI to identify the single role.
   • Policy: policy in which the role exists.
   • Entity Type: entity type targetted by the role.
   • Category: category assigned to the role.
   • Secondary Categories: other potential categories assigned to the role.
   • Approval Workflow: represents the number of validations required to assign the role.
   • Approve Role Implicitly: needs at least a simple approval workflow. Implicit mode bypasses the approval step(s) if the person who issues the role request is also the role officer. Explicit refuses said bypass. Inherited follows the policy decision to approve roles implicitly or not.
   • Hide in Simplified View: hides the role from the users' Simplified View in View Permissions dialog. This setting does not apply to roles which are either inferred or have workflow states which require manual action.
   • Comment Management on Permission Review: to change if different from the role policy.
   • Maximum Duration: duration (in minutes) after which the role will be automatically revoked, if no earlier end date is specified. It impacts only the roles which are manually assigned after the maximum duration is set. Pre-assigned roles are not impacted. If no duration is set on the role, the MaxDuration of the associated policy is applied. If the MaxDuration is set to 0 on the role, it prevents the associated policy from applying its MaxDuration to it.

4. Click on Create and see a line added on the roles page.

5. Create at least one single role rule with the composite role as a criterion.

Impact of Modifications

When deleting a composite role, caution must be used when deleting the corresponding single role rules. Indeed, these rules thus lose their criteria and may be applied to far too many people after that.

Simulations are available in order to anticipate the changes induced by a creation/modification/deletion in roles and single role rules.

Verify Composite Role Creation

In order to verify the process, check that the role and rule are created with the right parameters.

For roles, click on Access Roles on the home page in the Configuration section.

Select composite roles and find the role you created inside the right category and with the right parameters.

For rules, follow the instructions about assignment rules.
