DisplayPropertyGroup

A display property group bundles a list of entity properties together in a fieldset in the UI.

Examples

The following example will group a specific set of properties together, when displaying AD entries.

<DisplayPropertyGroup Identifier="AD_General" DisplayName_L1="General" />

Knowing that we have the following properties:
<DisplayEntityType Identifier="AD_Entry">    <Property Identifier="displayName" Group="AD_General" DisplayOrder="100" />    <Property Identifier="givenName" Group="AD_General" DisplayOrder="101" />    <Property Identifier="initials" Group="AD_General" DisplayOrder="102" />    <Property Identifier="sn" Group="AD_General" DisplayOrder="103" />    <Property Identifier="description" Group="AD_General" DisplayOrder="104" />    <Property Identifier="thumbnailPhoto" Group="AD_General" DisplayOrder="105" />    <Property Identifier="telephoneNumber" Group="AD_General" DisplayOrder="106" />    <Property Identifier="mobile" Group="AD_General" DisplayOrder="107" />    <Property Identifier="mail" Group="AD_General" DisplayOrder="108" />    ...
</DisplayEntityType>

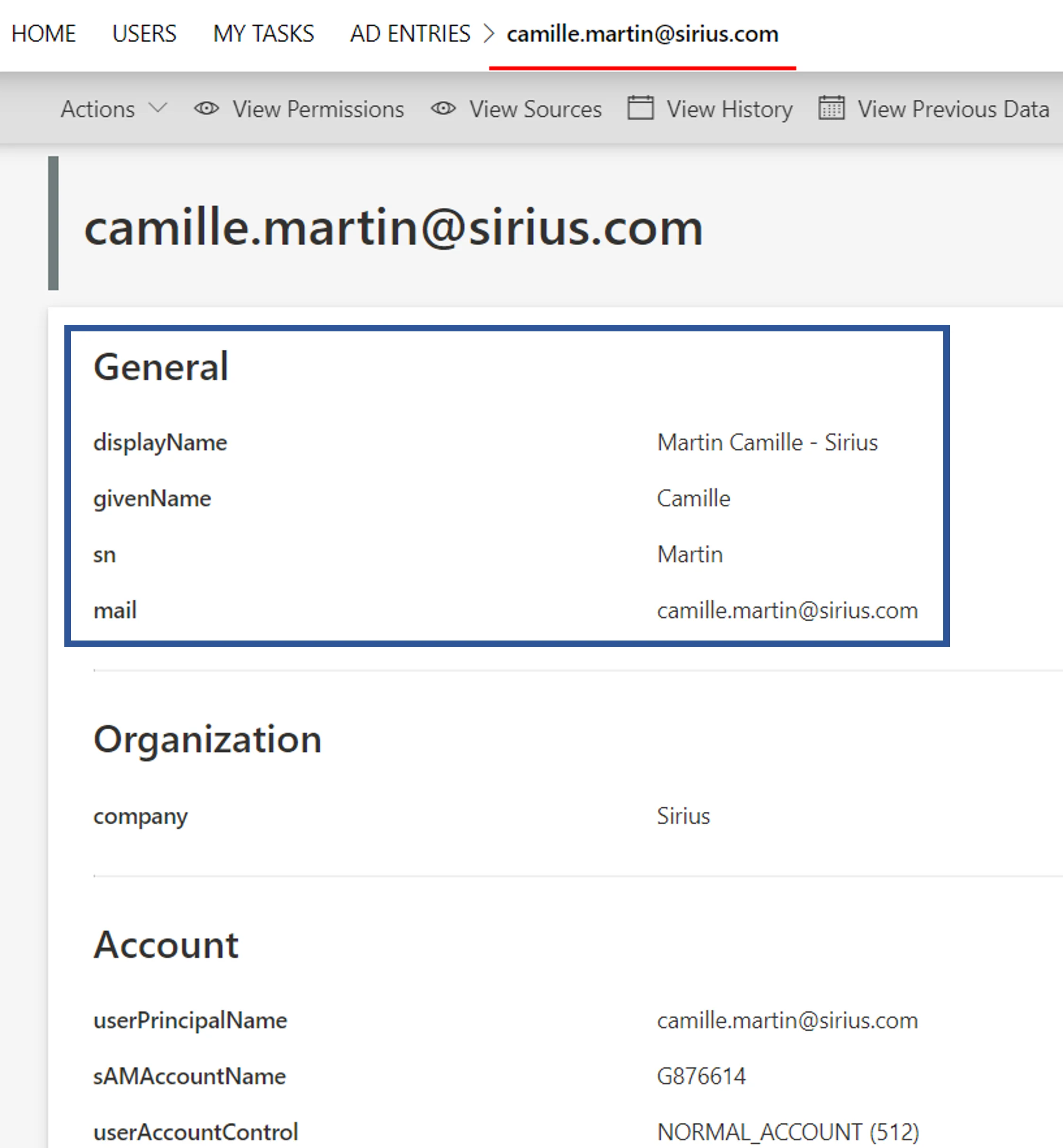

Display Property Group - Example

Any property without a value is not displayed.

Properties

Property	Details
DisplayName_L1 optional	Type String Description Display name of the fieldset in language 1 (up to 16).
Identifier required	Type String Description Unique identifier of the property group.
