AppDisplaySetting

This setting is used to customize the application display.

Examples

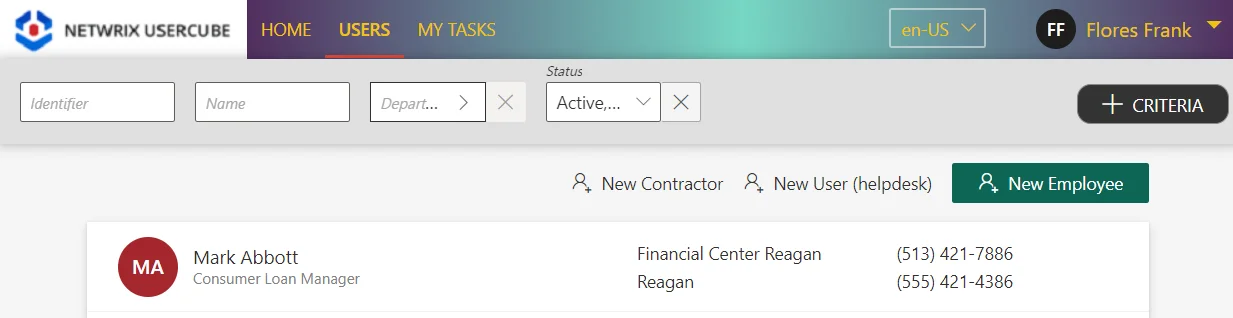

Set colors, logos and names

The following example sets:

• "Netwrix Usercube" as name of the application visible on the tabs;
• the logo to be displayed in the top left corner;
• the favicon to be displayed on the tabs;
• the banner color, banner gradient color, banner selected tab color, banner text color, primary color and secondary color.

<AppDisplaySetting ApplicationName="Netwrix Usercube" LogoFile="logo.webp" FaviconFile="favicon.ico" BannerColor="#512E5F" BannerGradientColor="#76D7C4" BannerSelectedTabColor="#E74C3C" BannerTextColor="#F1C40F" PrimaryColor="#0E6655" SecondaryColor="#85C1E9" />

Disable counters

The following example disables the counters that are usually visible on the dashboard:

<AppDisplaySetting DisableProvisioningCounters="true" />

Properties

Property	Details
ApplicationName optional	Type String Description Name of the application, visible on the application's tabs.
BannerColor optional	Type String Description HEX code of the color for the banner, i.e. the header displaying logo and navigation bar.
BannerGradientColor optional	Type String Description HEX code of the color for the banner's gradient to be visible at the middle of the banner.
BannerSelectedTabColor optional	Type String Description HEX code of the color for the line that emphasizes the selected tab.
BannerTextColor optional	Type String Description HEX code of the color for the banner's text.
DisableProvisioningCounters default value: false	Type String Description true to disable the counters related to the administration screens: Role Review, Provisioning Review, Role Reconciliation, Resource Reconciliation and Manual Provisioning.
FaviconFile optional	Type String Description Path of the favicon to be displayed in the application's tabs.
FaviconMimeType optional	Type String Description Mime type of the favicon.
FullNameSeparator default value: �	Type String Description Separator of the full name.
Identifier default value: AppDisplay	Type String Description Unique identifier of the setting.
LogoFile optional	Type String Description Path of the logo to be displayed in the top left corner.
LogoMimeType optional	Type String Description Mime type of the logo.
Preview optional	Type String Description Documentation unavailable.
PrimaryColor optional	Type String Description HEX code of the color for the highlighted buttons.
SecondaryColor optional	Type String Description HEX code of the color for the background of the authentication screen.
