AccessControlRule

An access control rule gives to a profile a set of permissions on a data set represented by an entity type.

The rule contains filters to restrict its application, and entries to grant or deny the permissions.

Examples

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<AccessControlRule Profile="Administrator" EntityType="Resource" Identifier="Administrator_Resource" DisplayName_L1="Administrator_Resource">  <Entry Permission="/Connectors/SynchronizeSession" CanExecute="true" />  <Entry Permission="/Connectors/ProvisioningSession" CanExecute="true" /></AccessControlRule><AccessControlRule Profile="Administrator" EntityType="Connector" Identifier="Administrator_Connector" DisplayName_L1="Administrator_Connector">  <Entry Permission="/Connectors/Connector/Query" CanExecute="true" />  <Entry Permission="/" /></AccessControlRule><AccessControlRule Profile="Administrator" EntityType="WorkflowInstance" Identifier="Administrator_WorkflowInstance" DisplayName_L1="Administrator_WorkflowInstance">  <Entry Permission="/Workflows/WorkflowInstanceData/Query" CanExecute="true" />  <Entry Permission="/Workflows/WorkflowInstance/Query" CanExecute="true" />  <Entry Permission="/" /></AccessControlRule>

Properties

Property	Type	Description
DisplayName_L1 required	String	Display name of the access control rule in language 1 (up to 16).
EntityType required	Int64	Identifier of the entity type that forms the data set on which the rule's permissions are applied. NOTE: The entity type can be part of the custom entity model, e.g. Directory_User or AD_Entry, or part of the built-in entity model, e.g. AssignedSingleRole or Workflows or AccessCertificationItem.
Identifier required	String	Unique identifier of the access control.
Profile required	Int64	The id of the profile to which the permissions will be given.

Child Element: Entry

AccessControlEntry grants or denies a permission to a user. Access Control Entries are part of an Access Control Rule that defines the users scope of responsibility in the Usercube UI/Workflows.

NOTE: If your configuration contains an access control entry with Permission="/" and CanExecute="true" then an error will occur during the configuration deployment, as a profile should not possess such a big permission.

Properties

Property	Type	Description
CanExecute default value: false	Boolean	Gives permission to execute permission.
FullAccessProperties default value: false	Boolean	Gives full access to all properties.
IsPostCondition default value: true	Boolean	If true, the rule is evaluated on the entity after modification.
IsPreCondition default value: true	Boolean	If true, the rule is evaluated on the entity before modification.
Notify default value: true	Boolean	True to send notification emails to the rule's recipient profile when executing tasks related to the specified Permission.
Permission required	Int64	Linked Permission.
Priority default value: 0	Int32	When a user has several contexts giving him access to the same right, the one with the highest priority is elected.
PropertyGroup optional	Int64	Gives the right to read for the PropertyGroup.

Child Element: Filter

An access control filter restricts the application of the access control rule to a given subset of the data set. The rule will give the specified permissions to the profile only on the parts of the rule's data set for which the filter's condition is met.

Remember, the ViewHistory permission (/Custom/Resources/Entity_Type/ViewHistory) does not work if a filter is added.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<AccessControlRule Profile="Manager" EntityType="Directory_User" Identifier="Administrator_LDAP_Entry_History__" DisplayName_L1="Administrator_LDAP_Entry_History_">
    <Entry Permission="/Custom/Resources/Directory_User/ViewHistory" CanExecute="true" />
  </AccessControlRule>

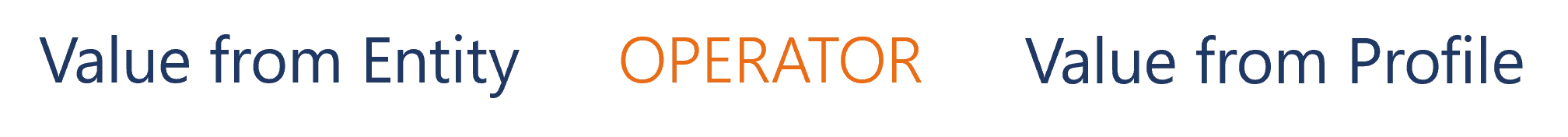

This condition is actually a comparison expression between two elements:

• The value of a property which is originating from an entity targeted by the rule
• A comparison value that can be constant, or originating from the user profile

Examples

Filter on a constant value

The following example gives to the Administrator profile certain permissions on user data, but only concerning users working in the marketing department.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<AccessControlRule Profile="Administrator" EntityType="Directory_User" Identifier="Administrator_Directory_User_Marketing" DisplayName_L1="Administrator_Directory_User_Marketing">
  <Filter Binding="MainOrganization.Code" Value="Marketing" />
  <Entry Permission="..." ... />  ...
</AccessControlRule>

Technically speaking, the filter here says that the rule's permissions apply only on users from Directory_User whose Code of MainOrganization is Marketing.

Filter on the account of the current user

The following example gives to the Manager profile certain permissions on user data, but only concerning users from the team managed by the current user.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<AccessControlRule Profile="Manager" EntityType="Directory_UserRecord" Identifier="Directory_UserRecord_Managers" DisplayName_L1="Directory_UserRecord_Managers">
  <Filter Binding="Manager.Id" CurrentUser="true" />
  <Entry Permission="..." ... />  ...
</AccessControlRule>

Technically speaking, the filter here says that the rule's permissions apply only on the users' records from Directory_UserRecord whose Id of Manager is the identifier of the account used by the current user to authenticate to Usercube.

Filter on the context(s) of the assigned profile(s) of the current user

The following example gives to the Manager profile certain permissions on user data, but only concerning users working in the same department as the current user.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<AccessControlRule Profile="Manager" EntityType="Directory_User" Identifier="Manager_MainDepartment_Directory_UserRecord" DisplayName_L1="Administrator_MainDepartment_Directory_UserRecord">
  <Filter Binding="MainDepartment.Id" Dimension="Department" />
  <Entry Permission="..." ... />  ...
</AccessControlRule><Dimension Identifier="Department" DisplayName_L1="Department" EntityType="Directory_Department" ColumnMapping="3" />

Technically speaking, the filter here says that the rule's permissions apply only on the users from Directory_User whose Id of MainDepartment is the same identifier as the value set for the Department dimension of the current user, in at least one of their assigned profiles.

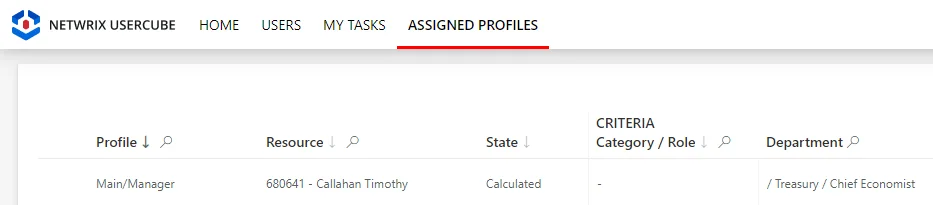

For example, Timothy Callahan is here assigned the Manager profile with the Department dimension set to Treasury/Chief Economist.

Thus, with the previous access control rule, Timothy Callahan will get certain permissions on users whose main department is Treasury/Chief Economist.

The following example gives to the RoleOfficerByCategory profile certain permissions on assigned single roles, but only concerning the roles of a category assigned to the current user.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<AccessControlRule Identifier="RoleOfficerByCategory_AssignedSingleRole_ReviewRoles" DisplayName_L1="Role Officer - Review Roles" EntityType="AssignedSingleRole" Profile="RoleOfficerByCategory">
  <Filter Binding="SingleRole.Category.Id" Category="true" />
  <Entry Permission="..." ... />  ...
</AccessControlRule>

Technically speaking, the filter here says that the rule's permissions apply only on the assigned single roles whose Id of the Category of the SingleRole is the same identifier as the value set for the Category property of the current user, in at least one of their assigned profiles.

Multiple filters

The following example gives to the RoleOfficerByCategory profile the permission to review the roles of users from Directory_User, but only the roles of a category assigned to the current user, and whose assignment is stated as pending the first approval out of 1, 2 or 3.

Code attributes enclosed with <> need to be replaced with a custom value before entering the script in the command line.

<AccessControlRule Identifier="RoleOfficerByCategory_AssignedSingleRole_ReviewRoles_Directory_User_8" DisplayName_L1="Role Officer - Review Roles" EntityType="AssignedSingleRole" Profile="RoleOfficerByCategory">
  <Filter Binding="Role.Category.Id" Category="true" />  <Filter Binding="WorkflowState" Value="8" />
  <Entry CanExecute="true" Permission="/Custom/ProvisioningPolicy/ReviewRoles/Directory_User" /></AccessControlRule><AccessControlRule Identifier="RoleOfficerByCategory_AssignedSingleRole_ReviewRoles_Directory_User_9" DisplayName_L1="Role Officer - Review Roles" EntityType="AssignedSingleRole" Profile="RoleOfficerByCategory">
  <Filter Binding="Role.Category.Id" Category="true" />  <Filter Binding="WorkflowState" Value="9" />
  <Entry CanExecute="true" Permission="/Custom/ProvisioningPolicy/ReviewRoles/Directory_User" /></AccessControlRule><AccessControlRule Identifier="RoleOfficerByCategory_AssignedSingleRole_ReviewRoles_Directory_User_11" DisplayName_L1="Role Officer - Review Roles" EntityType="AssignedSingleRole" Profile="RoleOfficerByCategory">
  <Filter Binding="Role.Category.Id" Category="true" />  <Filter Binding="WorkflowState" Value="11" />
  <Entry CanExecute="true" Permission="/Custom/ProvisioningPolicy/ReviewRoles/Directory_User" /></AccessControlRule>

Technically speaking, the filter here says that the rule's permissions apply only on the assigned single roles:

• Whose Id of the Category of the SingleRole is the same identifier as the value set for the Category property of the current user, in at least one of their assigned profiles, and
• Whose WorkflowState is set to 8 or 9 or 11, which mean respectively pending approval 1/1, 1/2 and 1/3.

Properties

Property	Type	Description
Binding required	Int64	Binding of the property whose value is to be checked to restrict the application of the rule's permissions. NOTE: The binding must be based on the entity type defined in the access control rule.
Category default value: false	Boolean	True to compare the value specified by the binding to the categories of the current user's assigned profiles.
CompositeRole default value: false	Boolean	True to compare the value specified by the binding to the composite roles of the current user's assigned profiles. See the AssignedProfile topic for additional information.
CurrentUser default value: false	Boolean	True to compare the value specified by the binding to the identifier of the account used by the current user to authenticate to Usercube. NOTE: The current user is the owner of the profile, allowed by the access control rule to perform an action and/or receive a notification. CurrentUser is tightly linked to the configuration of the SelectUserByIdentityQueryHandlerSetting.
Dimension optional	Int64	Identifier of the dimension whose value(s), from the user's assigned profiles, are to be compared to the value specified by the binding. See Dimension and AssignedProfile topics for additional information.
Group optional	String	Group that the filter is part of. The access control rule filters the permissions by using the union (OR) of all filter groups, and the intersection (AND) of all filters within a group. NOTE: When not specified, the filter is part of the default group.
Operator default value: 0	AccessControlFilterOperator	Comparison operator. 0 - Equals. 1 - NotEquals.
ResourceType default value: false	Boolean	True to compare the value specified by the binding to the resource types of the current user's assigned profiles. See the AssignedProfile topic for additional information.
SingleRole default value: false	Boolean	True to compare the value specified by the binding to the single roles of the current user's assigned profiles. See the AssignedProfile topic for additional information.
Value optional	String	Hard coded value to be compared to the value specified by the binding.
