Connect Power BI to Usercube

This guide shows how to connect Power BI to Usercube.

Overview​

When facing a periodic need for producing specific reports, especially when a visual presentation is required, Usercube offers the possibility to connect to the Power BI application. This application will allow you to create customized reports with a vast range of display options (such as graphs, charts, matrixes, etc.) using Usercube's universes.

Prerequisites​

  • Power BI Desktop must be installed on your device.
  • Usercube's server must be running.

Connect Power BI to Usercube​

Connect Power BI to Usercube by proceeding as follows:

  1. Open Power BI Desktop.

  2. Click on Get data either in the welcome window or in the home menu.

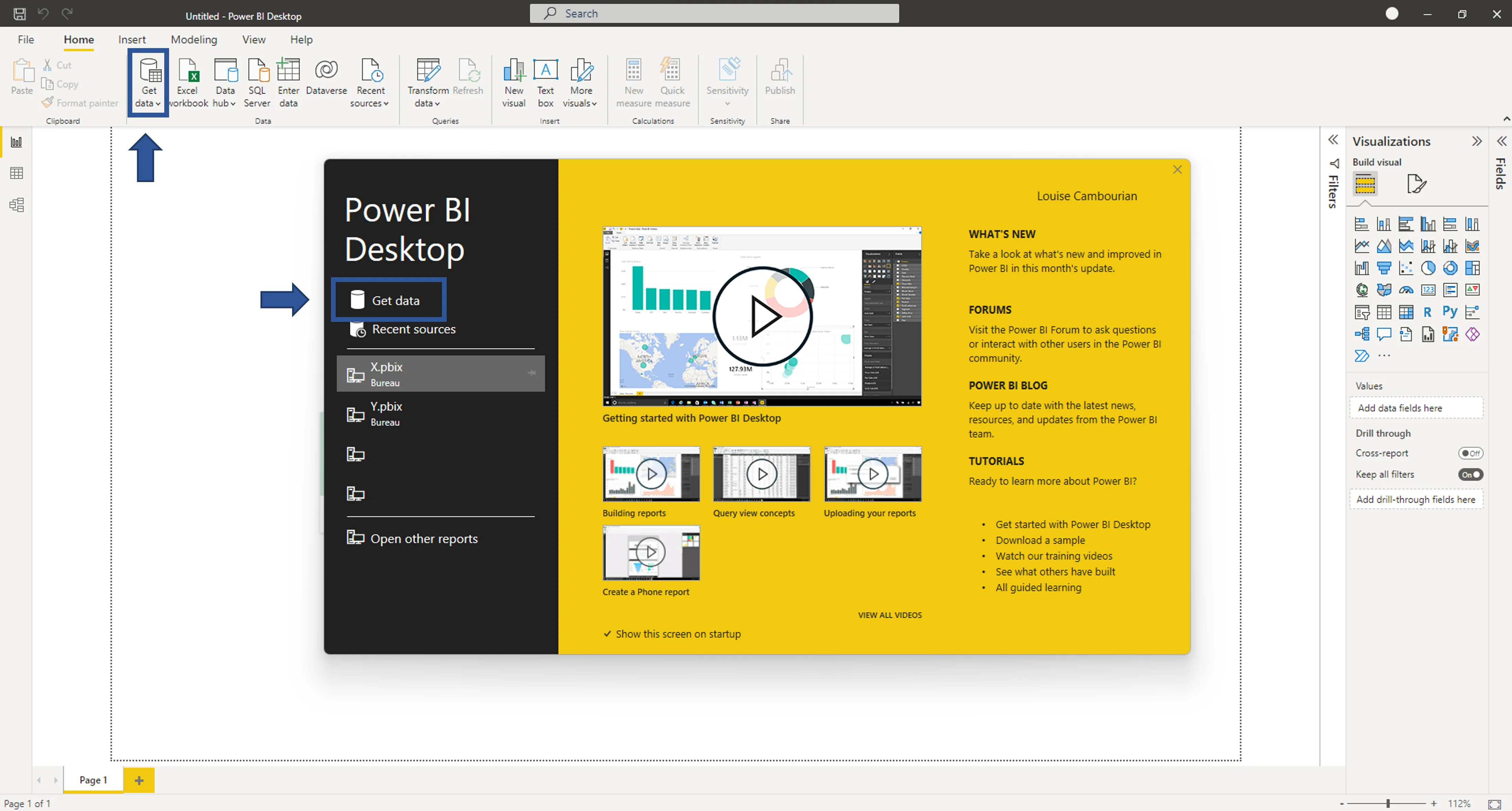

    Get Data

  3. In the opening window, search for Usercube, click on its plugin in the right menu, and click on Connect.

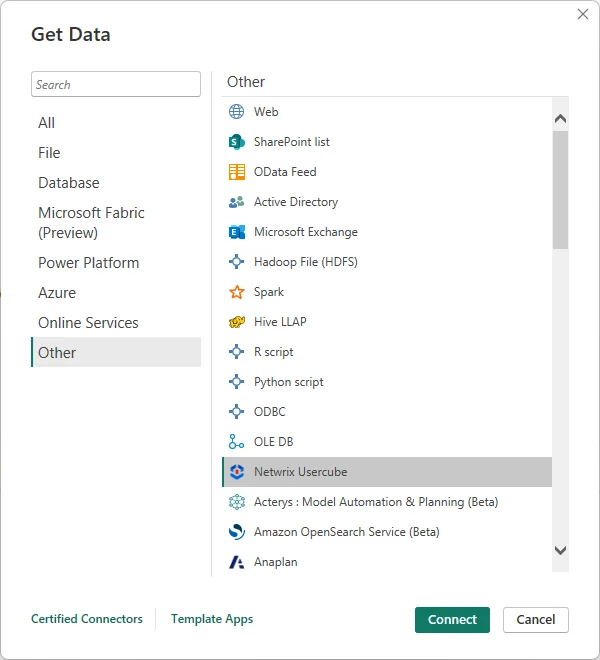

    Get Data Window

  4. Enter Usercube's server URL in the opening window.

    Server URL

  5. In the opening window, enter the OpenIdClient of the Administrator profile. The Client Id expects the concatenation of the identifier of OpenIdClient with @ and Usercube's domain name. See the following example.

    Client Id / Client Secret

  6. You can now access in the left panel the universes from Usercube configuration. You can click on the desired universe to expand it, and view and pick the desired tables.

    Universe Panel

    Power BI tip: to view a table, click on its name. To select a table, check the box next to the table's name.

  7. Once you've selected all the tables you need, click on Load to import data to the Power BI report. You can also click on Transform data to open the query editor and make other changes in your tables, rows and columns.

Clear the Cache​

Remember to clear the cache in Power BI to ensure that all changes are considered.

Clear the cache by proceeding as follows:

  1. In Power BI, click on File > Options and settings > Options.

  2. In the Data Load tab, click on Clear Cache.

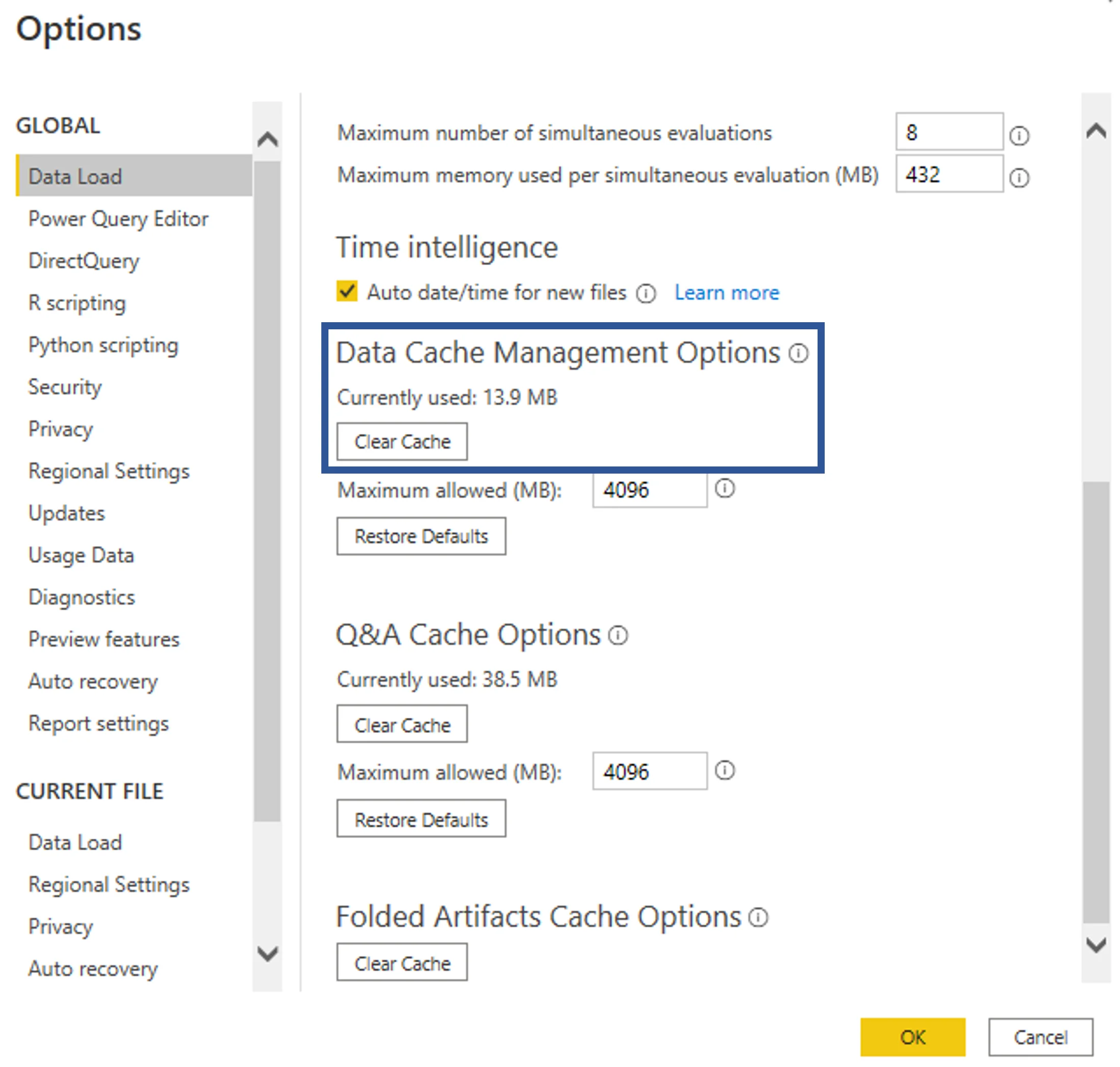

    Clear Cache
