Export CyberArk Data via SCIM

This guide shows how to set up a SCIM connector to extract data from your CyberArk instance into CSV source files that will in turn be fed to the Synchronization task and to your Usercube resource repository. It will focus on registering Usercube within the target CyberArk instance, configuring the connector, and building the job to perform regularly scheduled synchronization.

Prerequisites

External system configuration

Usually CyberArk provides the environment to use AAM (Application Access Manager) and SCIM (System for Cross-domain Identity Management). For example, PrivateArk Server, PrivateArk and other tools can be found on a VM-based environment.

It is strongly recommended that you follow the official CyberArk SCIM Server Implementation Guide (the CyberArk team can provide this document) in order to set up the environment. When you've completed the installation or if CyberArk has already installed it, you can verify the installation:

Log into PrivateArk Client, locate and open the SCIM Config safe.
Check the presence of the following objects:
- Encryption-key: The SCIM Server uses a local cache to store objects retrieved from the Vault. Although no credentials (other than the ones in the SCIM Config safe, which are not stored on the cache) are retrieved, we encrypt the cache with this encryption key. The key is randomly generated, and not exposed by the installer, but can be changed if desired.
- GlobalConfig.yml: This is the configuration file for the overall SCIM server settings. It is responsible for the setting of performance parameters and additional added features.
- Usercube-account: This is a privileged account to allow Usercube to authenticate its REST API requests to the SCIM Server. The password for this account must be the same as the Usercube-user (Usercube can be replaced by any other name like �Client').
- SCIM-account: This is a privileged account, managed by the Central Policy Manager (CPM is the module of the PAM tool that is responsible for managing the passwords and any policies/exceptions configured), which allows the SCIM server to retrieve the password for SCIM-user through an Application Identity Manager (AIM) Credential Provider call.
Verify that the following Users were created in the PrivateArk Client:
- Go to Tools > Administrative Tools.
- Select Users and Groups.
- Ensure the following users have been created:
  - SCIM-user: This is a CyberArk user with full privileges for creating and managing Safes, Accounts, Permissions, and Users. This user is required by the CyberArk's Command Line Interface (PACLI, used to perform quick Vault-level functions without logging in to the PrivateArk client) on the SCIM server for logging into the Vault and managing objects on behalf of client applications such as Usercube.
  - Client-user: This is a CyberArk user for authenticating requests made to the SCIM server using the REST API. (The name �Client-user' can change and be replaced by �Usercube-user' for example.)
Now we can consider that the installation is correct, the login is Usercube-user and the password CyberArk1.

Usercube configuration

This step sets up the Usercube Agent to use the SCIM connector and access the CyberArk data.

The settings must be entered in the appsettings.agent > Connections section.

Connect to the target CyberArk instance

In the Connections section, add one new subsection that will contain the credentials for the target CyberArk. Use a meaningful name to remember which CyberArk is accessed via this section.

This example connects via the SCIMCyberArkExport connection to the CyberArk system:
appsettings.agent.json
{
  ...
  "Connections": {
    ...
    "SCIMCyberArkExport": {
      ...
    }
  }
}

Input credentials

In the newly created subsection, fill in:

The Server attribute with the CyberArk's address. It has the form: https://host:port/CyberArk/scim.
The Login attribute with the User's login value (in our example, Usercube-user).
The Password attribute with the User's login value (in our example, Cyberark1).

For example:

appsettings.agent.json
{
  ...
  "Connections": {
    ...
    "SCIMCyberArkExport": {
      "Server": "https://host:port/CyberArk/scim",
      "Login": "Usercube-user",
      "Password": "Cyberark1"
    }
  }
}

For pedagogical reasons, this guide focuses on the simplest way to set up the export, but it's not the most secure. Hence it is strongly recommended that you protect credentials using Azure Key Vault or CyberArk in a production environment.
NETWRIX recommends completing this guide once, testing the configuration, and only then, switching to a more secure way of storing credentials.

Set exported objects, exported attributes and export files

This step focuses on choosing and setting up the list of SCIM objects and attributes to be exported.

The Filter attribute defines what is exported. It is located in the appsettings.agent > Connections > SCIMCyberArkExport subsection previously created.

Choose objects to export

The list of objects to export depends on the Role Model requirements. The list will evolve iteratively as the project's needs become clearer.

The SCIM entities available in a CyberArk implementation are:

Users: CyberArk Users.
Containers: Containers/CyberArk Safes.
ContainerPermissions: Permissions on CyberArk Safes.
Privileged Data: Privileged Data/CyberArk Accounts.
Groups: CyberArk Groups.

Filters are defined in the next part.

Filtering

An exhaustive list of entities and attributes provided by CyberArk is available in their technical documentation or the SCIM Swagger UI.

The Filter and FilterGroup setting syntax is detailed in the SCIM optional attributes.

SCIMSyntax must also be set to CyberArk because the CyberArk system doesn't strictly follow all the SCIM rules at the moment.

Example

The following example sets up the Users, ContainerPermissions, Containers and Groups for export.

For Users, we give an example for each type of attribute:

userName is an attribute of the base schema.
ldapFullDN is an attribute of the urn:ietf:params:scim:schemas:cyberark:1.0:User schema because it is separated by �.
givenName is a sub-attribute of the attribute name because it is separated by :.

Notice the * that separates the entities.

appsettings.agent.json
{
  ...
  "Connections": {
    ...
    "SCIMCyberArkExport": {
      "Server": "https://host:port/CyberArk/scim",
      "Login": "Usercube-user",
      "Password": "Cyberark1",
      "Filter": "Users;urn:ietf:params:scim:schemas:cyberark:1.0:User�ldapFullDN|ldapDirectory id userName active name:givenName|middleName|familyName emails:value phoneNumbers:value title profileUrl source nativeIdentifier*ContainerPermissions;id user:value group:value container:value rights*Containers;id displayName type name",
      "FilterGroup": "Groups;id displayName",
      "SCIMSyntax": "CyberArk"
    }
  }
}

Set up export files

The export generates CSV source files that will be fed to the Synchronization task.

The SCIM connector generates one file per entity, the name is generated as: EntryFile + '_' + FilterEntity or MembersFile + '_' + FilterGroupEntity.

Moreover, SyncCookiesFile can be specified to indicate the location of the cookie file for an incremental export.

For more details, see SCIM optional attributes.

The target directory and file name are chosen freely. However, NETWRIX strongly recommends using the working directoryTemp/ExportOutput folder and choosing file names that start with the CyberArk_ prefix.

Example

With the following example, the resulting files are:

C:/identitymanagerDemo/Temp/ExportOutput/CyberArk_Users.csv
C:/identitymanagerDemo/Temp/ExportOutput/CyberArk_ContainerPermissions.csv
C:/identitymanagerDemo/Temp/ExportOutput/CyberArk_Containers.csv
C:/identitymanagerDemo/Temp/ExportOutput/CyberArk_members_Groups.csv

appsettings.agent.json
{
  ...
  "Connections": {
    ...
    "SCIMCyberArkExport": {
      "Server": "https://host:port/CyberArk/scim",
      "Login": "Usercube-user",
      "Password": "Cyberark1",
      "Filter": "Users;urn:ietf:params:scim:schemas:cyberark:1.0:User�ldapFullDN|ldapDirectory id userName active name:givenName|middleName|familyName emails:value phoneNumbers:value title profileUrl source nativeIdentifier*ContainerPermissions;id user:value group:value container:value rights*Containers;id displayName type name",
      "FilterGroup": "Groups;id displayName",
      "EntryFile": "C:/identitymanagerDemo/Temp/ExportOutput/CyberArk",
      "MembersFile": "C:/identitymanagerDemo/Temp/ExportOutput/CyberArk_members",
      "SCIMSyntax": "CyberArk"
    }
  }
}

Every file contains the data as CSV, with one column per attribute.

Build the Connector

Declare a connector

To be used for export tasks, a connector must be declared in the applicative configuration and linked to an Agent.

It is strongly recommended that the applicative configuration be stored in the working directoryConf folder as a set of xml files organized by connector.

In the Conf folder, create a SCIMCyberArk directory.
In the SCIMCyberArk directory create a CyberArk Connector.xml file.

This file contains the declaration of the connector and the associated Entity Model.
Use the <Connector> element to declare the connector with the following attributes:
- Identifier identifies this connector in the applicative configuration. We recommend using a meaningful name such as CyberArk. If several connections to several CyberArk targets are possible, only one CyberArk Connector per Agent is used.
- DisplayName_Li, i ? [1..16] are used in the UI.
- Agent is the identifier of the Agent that will run this connector's export task. The Agent's identifier can be found in the agent's appsettings.agent > OpenId > AgentIdentifier.
Don't forget the <?xml> and <ConfigurationFile> elements (see example below).

This example declares the CyberArk connector on the Local agent:

Conf/SCIMCyberArk/CyberArk Connector.xml

<?xml version="1.0" encoding="utf-8"?><ConfigurationFile xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns="urn:schemas-usercube-com:configuration">    ...
    <Connector Identifier="CyberArk" DisplayName_L1="CyberArk" Agent="Local" />    <Connection Identifier="SCIMCyberArkExport" Connector="CyberArk" DisplayName_L1="CyberArk" Package="Usercube.SCIM.CyberArk@0000001" />    ...
</ConfigurationFile>

Build the entity model

The exported data to be written to the resource repository must be aligned with the Entity Model.

The Entity Model should match as closely as possible the structure of the CyberArk data relevant for Usercube. It is designed by analyzing the CyberArk data structure, and describing said data with Entity Types and Entity Associations. Eventually, it is up to the integration team to design the Entity Model that best serves the Role Model needs. It will most likely be refined iteratively throughout the project integration.

A good starting point for the Entity Model is to mirror the shape of the exported CyberArk SCIM objects. This guide provides a few examples that can serve this purpose. Thus, CyberArk SCIM objects such as Users and Groups can be described by Entity Types, and group membership by Entity Associations.

The Entity Model for the CyberArk connector is written in the applicative configuration. It is strongly recommended to write the entity model to the newly created Conf/SCIMCyberArk/CyberArk Connector.xml file.

Write entity types

Declaring an Entity Type is achieved with the <EntityType> tag and the following attributes:

Identifier is the entity type's name. It must be unique among the entity types. It is strongly recommended to prefix this name with the connector's name. An example for CyberArk is CyberArk_User.
DisplayName_Li, i ? [1..16] are used in the UI to identify this Entity Type for the end-user. DisplayName_L1 is the name of the entity type in language number one. If this language is English, a good example value would be CyberArk - User.

Example

Conf/SCIMCyberArk/CyberArk Connector.xml
...
<EntityType Identifier="CyberArk_User" DisplayName_L1="CyberArk - User">  ...
</EntityType>...

The CyberArk SCIM objects attributes are modeled by Entity Properties, with the <Property> tags declared as children of the <EntityType>.

Remember that there are several kinds of properties (determined by the TargetColumnIndex): scalar and navigation.

Scalar properties can be defined to represent scalar attributes such as userName, active or givenName.
Navigation properties represent associations such as group memberships.

Finally, the main attributes of the <Property> tag are the following:

Identifier identifies the property with a mandatory unique name. It must be unique among the entity properties for this entity type.
DisplayName_Li, i ? [1..16] are used in the UI.
Type defines the type of property. A scalar property type can be: String, Bytes, Int16, Int32, Int64, DateTime, Bool, Guid, Double, Binary, Byte, or Option. The navigation property type is ForeignKey.
TargetColumnIndex defines in which column of the resource table the property is stored. See more details at TargetColumnIndex.

Example

This example defines an entity type named CyberArk_User to match the attributes selected for extraction from CyberArk in the previous example.

Notice the omitted TargetColumnIndex attribute and the presence of Type="ForeignKey" for the groups and containers properties. If omitted, this attribute indicates that the properties are navigation properties.

Conf/SCIMCyberArk/CyberArk Connector.xml
...
<EntityType Identifier="CyberArk_User" DisplayName_L1="CyberArk User" DisplayName_L2="Compte CyberArk">    <Property Identifier="CyberArk_id" DisplayName_L1="Id" IsKey="true" TargetColumnIndex="0" Type="String" />    <Property Identifier="userName" DisplayName_L1="User Name" TargetColumnIndex="6" Type="String" />    <Property Identifier="active" DisplayName_L1="Active" TargetColumnIndex="7" Type="String" />    <Property Identifier="givenName" DisplayName_L1="First Name" TargetColumnIndex="8" Type="String" />    <Property Identifier="middleName" DisplayName_L1="Middle Name" TargetColumnIndex="9" Type="String" />    <Property Identifier="familyName" DisplayName_L1="Last Name" TargetColumnIndex="10" Type="String" />    <Property Identifier="emails" DisplayName_L1="Emails" TargetColumnIndex="11" Type="String" />    <Property Identifier="phoneNumbers" DisplayName_L1="Phone Numbers" TargetColumnIndex="12" Type="String" />    <Property Identifier="title" DisplayName_L1="Title" TargetColumnIndex="13" Type="String" />    <Property Identifier="profileUrl" DisplayName_L1="Profile Url" TargetColumnIndex="14" Type="String" />    <Property Identifier="dn" DisplayName_L1="DN" TargetColumnIndex="15" Type="String" />    <Property Identifier="source" DisplayName_L1="Source" TargetColumnIndex="16" Type="String" />    <Property Identifier="ldapFullDN" DisplayName_L1="LdapFullDN" TargetColumnIndex="17" Type="String" />    <Property Identifier="ldapDirectory" DisplayName_L1="LdapDirectory" TargetColumnIndex="18" Type="String" />    <Property Identifier="groups" DisplayName_L1="Groups" Type="ForeignKey" />    <Property Identifier="containers" DisplayName_L1="containers" Type="ForeignKey" /></EntityType>...

Write entity associations

Entity Types are associated through their navigation properties with Entity Association elements.

Example

The following example declares an n-n association between a CyberArk_User and CyberArk_Group.

The groups property of a CyberArk_User is a collection of Group IDs (modeled as an CyberArk_Group EntityType) of which this CyberArk_User is a member.

The Users property of a CyberArk_Group is a collection of CyberArk_UserIDs which are members of this Group.

Conf/SCIMCyberArk/CyberArk Connector.xml
...
<EntityAssociation Identifier="CyberArk_Group_Members" DisplayName_L1="Group Members" IsProperty1Collection="true" Property1="CyberArk_Group:Users" IsProperty2Collection="true" Property2="CyberArk_User:groups" />...

The exact nature of the IDs are described by the associated EntityAssociationMapping.

Notice the format of the Property1 and Property2 xml attributes: the name of the entity type followed by : and the name of an entity property. It is a binding that describes in one expression both the target entity type and property.

Create mapping

The entity type must be mapped property by property to the exported attributes of CyberArk SCIM objects (namely, the columns of the CSV source files generated by the export).

The EntityTypeMapping, EntityAssociationMapping, and EntityPropertyMapping elements serve this purpose.

Write the entity type mapping

The EntityTypeMapping element maps scalar properties from the CSV source file to an entity type.

The CSV source file path is written to the ConnectionTable xml attribute. The target entity type name is written to the Identifier xml attribute.

Conf/SCIMCyberArk/CyberArk Connector.xml
...
<EntityTypeMapping Identifier="CyberArk_User" Connector="CyberArk" ConnectionTable="SCIMCyberArkExport_Users" >  ...
</EntityTypeMapping>...

To do so, the entity type mapping uses the EntityPropertyMapping element with the <Property> tag. This maps the CSV column from ConnectionColumn to the target EntityType property which is written to the Identifier attribute.

Example

Conf/SCIMCyberArk/CyberArk Connector.xml
...
<EntityTypeMapping Identifier="CyberArk_User" Connector="CyberArk" ConnectionTable="SCIMCyberArkExport_Users" >  <Property Identifier="CyberArk_id" ConnectionColumn="id" IsPrimaryKey="true" />  <Property Identifier="userName" ConnectionColumn="userName" />  <Property Identifier="active" ConnectionColumn="active" />  <Property Identifier="givenName" ConnectionColumn="name:givenName" />  <Property Identifier="middleName" ConnectionColumn="name:middleName" />  <Property Identifier="familyName" ConnectionColumn="name:familyName" />  <Property Identifier="emails" ConnectionColumn="emails:value" IsMultiValuedProperty="true" />  <Property Identifier="phoneNumbers" ConnectionColumn="phoneNumbers:value" IsMultiValuedProperty="true" />  <Property Identifier="title" ConnectionColumn="title" />  <Property Identifier="profileUrl" ConnectionColumn="profileUrl" />  <Property Identifier="ldapDirectory" ConnectionColumn="ldapDirectory" />  <Property Identifier="ldapFullDN" ConnectionColumn="ldapFullDN" />  <Property Identifier="source" ConnectionColumn="source" ScimSchema="urn:ietf:params:scim:schemas:pam:1.0:LinkedObject"/>  <Property Identifier="dn" ConnectionColumn="nativeIdentifier" ScimSchema="urn:ietf:params:scim:schemas:pam:1.0:LinkedObject" /> </EntityTypeMapping>...

As a result, after synchronization, the UR_Resource table will be updated from the CSV source files data.

Let's take the example of a new CyberArk_User which has never been synchronized. The UR_Resource table receives a new line for which the 6th column (userName) is filled in with the userName column from the C:/identitymanagerDemo/Temp/ExportOutput/CyberArk_Users.csv file.

Write the entity association mapping

The EntityAssociationMapping element maps navigation properties, used in EntityAssociation.

An EntityAssociationMapping element refers to an EntityAssociation written to the Identifier xml attribute. Then, just as the EntityTypeMapping element, it maps columns values from a CSV source file to an EntityType property.

Example

The following example describes the actual user/group associations between CyberArk_User and CyberArk_Group. These associations are exported from the CyberArk system into the C:/identitymanagerDemo/Temp/ExportOutput/CyberArk_members_Groups.csv file. Each line of the file associates a value (property CyberArk_id from CyberArk_Group) and a MemberId (property CyberArk_id from CyberArk_User).

value	MemberId
1	100
1	101
2	102
2	103
3	104

The following EntityAssociationMapping describes the mapping for the CyberArk_Group_Members EntityAssociation:

Conf/SCIMCyberArk/CyberArk Connector.xml
...
<EntityAssociation Identifier="CyberArk_Group_Members" DisplayName_L1="Group Members" IsProperty1Collection="true" Property1="CyberArk_Group:Users" IsProperty2Collection="true" Property2="CyberArk_User:groups" /><EntityAssociationMapping Identifier="CyberArk_Group_Members" Column1="value" EntityPropertyMapping1="CyberArk_Group:CyberArk_id" Column2="MemberId" EntityPropertyMapping2="CyberArk_User:CyberArk_id" Connector="CyberArk" ConnectionTable="SCIMCyberArkExport_members_Groups" />...

Here are a few explanations:

Users/CyberArk_Group

The Users property in the CyberArk_Group entity:

is written to the Property1 attribute of the CyberArk_Group_MembersEntityAssociation element.
is filled in by values from the MemberId column (written to the Column2 attribute of the CyberArk_Group_MembersEntityAssociationMapping element) in the C:/identitymanagerDemo/Temp/ExportOutput/CyberArk_members_Groups.csv file.

These values identify resources of type CyberArk_User by their CyberArk_id property (written to the EntityPropertyMapping2 attribute of the EntityAssociationMapping element.

Groups/CyberArk_User

The Groups property in the CyberArk_User entity:

is written to the Property2 attribute of the CyberArk_Group_MembersEntityAssociation element).
is filled in by values from the value column (written to the Column1 attribute of the CyberArk_Group_MembersEntityAssociationMapping element) in the C:/identitymanagerDemo/Temp/ExportOutput/CyberArk_members_Groups.csv file.

These values identify resources of type CyberArk_Group by their CyberArk_id property (written to the EntityPropertyMapping1 attribute of the EntityAssociationMapping element).

Display

This step focuses on configuring a nice display for the synchronized list of resources in the UI.

A MenuItem can be added to include a link to the resources list in the left menu in the UI home screen.

It strongly recommended to gather synchronized resources menu items under parent menu items. This is usually declared in the configuration root folder Nav.xml file.

Example

Conf/Nav.xml
...
<MenuItem Identifier="Nav_Connectors" DisplayName_L1="Connectors" DisplayName_L2="Connecteurs" ParentMenuItem="Nav" />...

It is strongly recommended to use a new CyberArk Nav.xml file in the SCIMCyberArk connector's folder in order to add the CyberArk SCIM objects menu item.

Example

Conf/SCIMCyberArk/CyberArk Nav.xml
...
<MenuItem Identifier="Nav_Connectors_CyberArk" DisplayName_L1="CyberArk" DisplayName_L2="CyberArk" ParentMenuItem="Nav_Connectors">  <MenuItem Identifier="Nav_Connectors_CyberArk_User" DisplayName_L1="CyberArk Users" DisplayName_L2="Comptes CyberArk" EntityType="CyberArk_User" />  <MenuItem Identifier="Nav_Connectors_CyberArk_Group" DisplayName_L1="CyberArk Groups" DisplayName_L2="Groupes CyberArk" EntityType="CyberArk_Group" />  <MenuItem Identifier="Nav_Connectors_CyberArk_Container" DisplayName_L1="CyberArk Safes" DisplayName_L2="Safes CyberArk" EntityType="CyberArk_Container" /></MenuItem>...

Adds a new menu item under the Nav_Connectors menu item declared in the root Nav.xml file. This new menu item gives access to the list of synchronized CyberArk SCIM objects.

SCIM CyberArk Menu Items

Configuration

It is strongly recommended that the display configuration be written to a new CyberArk UI.xml file in the SCIMCyberArk connector's folder.

Display entity type

The DisplayEntityType describes how a single resource should be displayed.

Example

Conf/SCIMCyberArk/CyberArk UI.xml
...
<DisplayEntityType Identifier="CyberArk_User">  <Property OutputType="BasicCollection" Identifier="groups" />  <Property OutputType="BasicCollection" Identifier="containers" /></DisplayEntityType>...

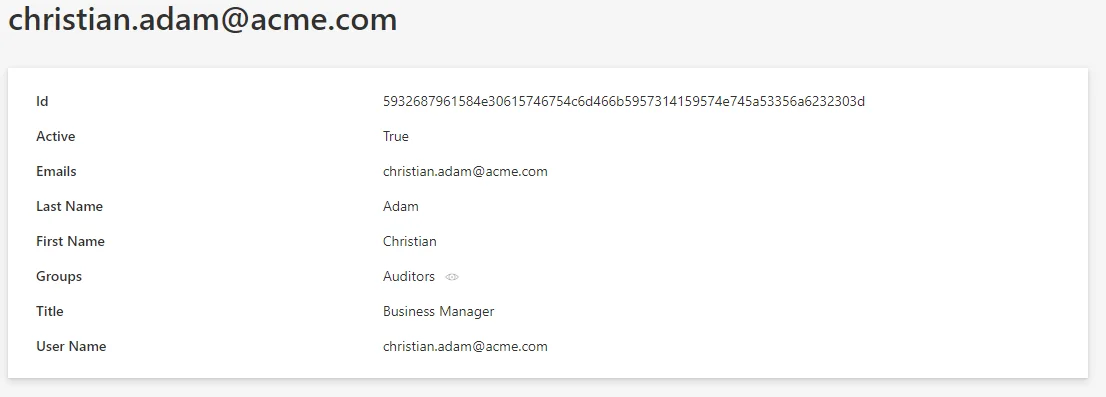

This configuration configures that display for christian.adam@acme.com:

SCIM CyberArk Display Entity Type

The scalar properties don't need to be configured: they are automatically displayed. The only information that the DisplayEntityType adds here, is that the property BasicCollection is a navigation property. An eye icon will be displayed to take you directly to the matching page.

Display table

The DisplayTable elements describe how a list of resources should be displayed.

The DisplayTable contains a list of DisplayTableColumn elements that identify which properties should be included in the list display.

Example

Conf/SCIMCyberArk/CyberArk UI.xml
...
<DisplayTable Identifier="CyberArk_User" EntityType="CyberArk_User" DisplayTableDesignElement="resourcetable" IsEntityTypeDefault="true">  <Column DefaultSortPriority="1" DisplayBinding="userName" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" />  <Column DisplayBinding="givenName" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" />  <Column DisplayBinding="familyName" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" />  <Column DisplayBinding="ldapDirectory" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" />  <Column DisplayBinding="ldapFullDN" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" />  <Column DisplayBinding="title" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" />  <Column DisplayBinding="active" IsDisplayInSummaryView="true" IsResizable="true" IsSortable="true" CanBeFiltered="true" ColumnSize="2" /></DisplayTable>...

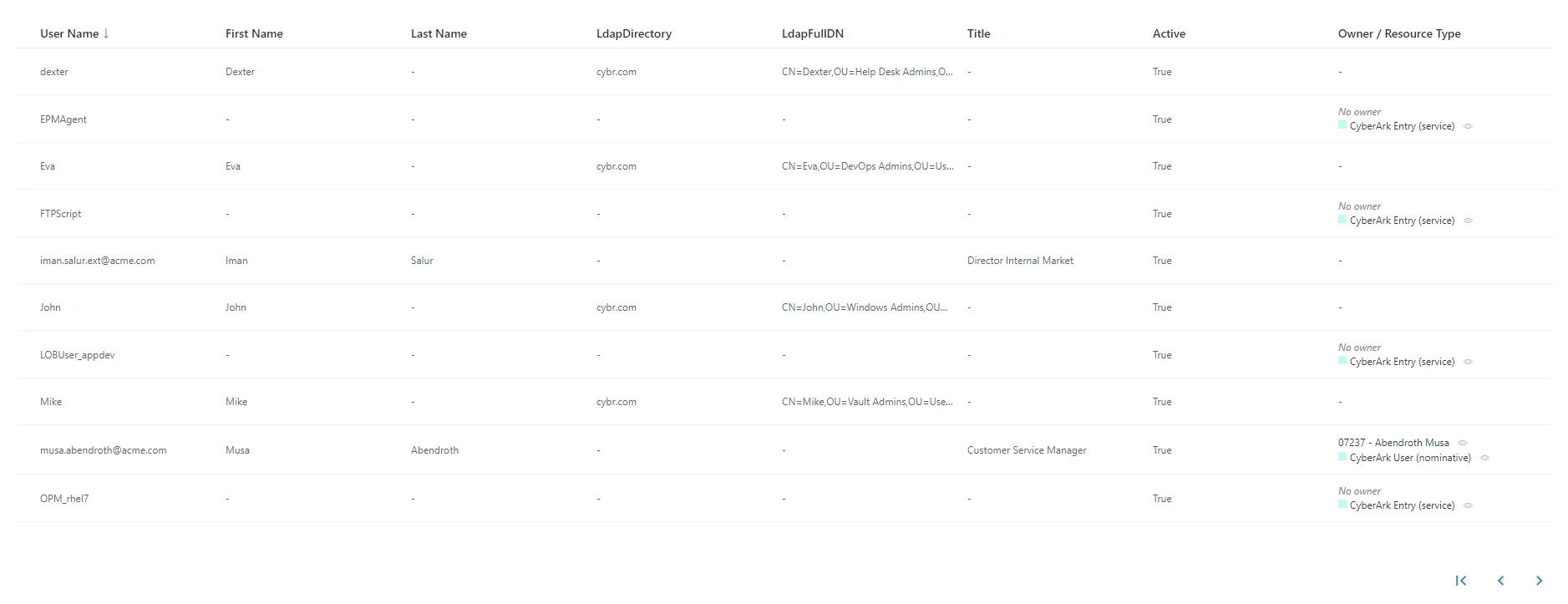

configures the following list display:

SCIM CyberArk Display Table

Internal display name

An InternalDisplayName can also be declared as an EntityPropertyExpression. The InternalDisplayName is used in several UI screens to identify a resource for the user.

With no custom InternalDisplayName, a default value is used (instead of the first property of the identity) containing the string "name". If no such property is found, the first declared property of the entity type is used.

Example

Conf/SCIMCyberArk/CyberArk UI.xml
...
<EntityPropertyExpression Identifier="CyberArk_User_InternalDisplayName" Expression="C#:resource:return resource.userPrincipalName ?? resource.mail ?? resource.displayName ?? resource.Id.ToString();" EntityType="CyberArk_User" Property="InternalDisplayName" />...

adds the InternalDisplayName to the CyberArk_User entity type to be used by the UI.

Permissions

This step focuses on setting up permissions for Usercube's end-users granting them access to the connector.

The AccessControlRule and AccessControlEntry elements define permissions for end-user profiles to read and write the connector's data (such as resources of a given entity type). It used by the UI when displaying data such as resources and available roles.

It is strongly recommended that permissions be written to a new file. For example, the administrator profile permissions can be written to the CyberArk Profile Administrator.xml file.

Example

The following example sets permissions for the Administrator profile.

It entitles an administrator to display CyberArk SCIM resource and role categories from the UI.

Conf/MicrosoftEntraID/MicrosoftEntraID Profile Administrator.xml
...
<AccessControlRule Profile="Administrator" EntityType="ResourceType" Identifier="Administrator_ResourceTypeSelector_resourceType_CyberArk" DisplayName_L1="Administrator_ResourceTypeSelector_resourceType_CyberArk">  <Entry Permission="/Custom/Resources/CyberArk_User/View" CanExecute="true" />  <Entry Permission="/Custom/Resources/CyberArk_Group/View" CanExecute="true" />  <Entry Permission="/Custom/Resources/CyberArk_Container/View" CanExecute="true" /></AccessControlRule><AccessControlRule Profile="Administrator" EntityType="Category" Identifier="Administrator_ResourceTypeSelector_category_CyberArk" DisplayName_L1="Administrator_ResourceTypeSelector_category_CyberArk">  <Entry Permission="/Custom/Resources/CyberArk_User/View" CanExecute="true" />  <Entry Permission="/Custom/Resources/CyberArk_Group/View" CanExecute="true" />  <Entry Permission="/Custom/Resources/CyberArk_Container/View" CanExecute="true" /></AccessControlRule>...

Jobs

Construction

This step focuses on writing a Complete Synchronization job.

It is strongly recommended to write Jobs associated with the CyberArk connector to the Conf/SCIMCyberArk/SCIM CyberArk Jobs.xml file.

Components

All the job steps can be found in the CreateConnectorSynchroComplete scaffolding.

Example

Conf/SCIMCyberArk/SCIM CyberArk Jobs.xml
...
<CreateConnectorSynchroComplete Connector="CyberArk" DisplayName_L1="01: CyberArk - Synchronization Complete (scaffolding)" JobIdentifier="CyberArk_Synchronize_Complete_Scaffolding">  <OpenIdIdentifier Identifier="Job"/></CreateConnectorSynchroComplete>...

This job will be executed on CyberArk's connector agent.

Notice the Identifier attribute with the value Job in the OpenIdIdentifier tag. It refers to the ClientId written to the appsettings.agent technical configuration. The Tasks will authenticate with the profile associated with this ClientId in the <OpenIdClient> xml configuration element.

Incremental synchronization can be configured with the following scaffolding.

Permissions

The execution of a Job entails execution of Tasks, reading/writing to the Database and sending files over to the Server. These operations are protected by an authorization mechanism.

To complete a Job, the Agent, via the Usercube-Invoke-Job tool, uses:

a Profile associated with the Job itself to read/write:
- UJ_Jobs and UJ_Tasks tables in a list of tasks
- UJ_JobInstances tables in the progress report
a Profile for each Task, to read/write UJ_TaskInstances tables (Progress Report) and perform other operations such as sending export files over to the Server.

Each Profile must be assigned the right permissions for the associated Job or Task to perform.

Every request from Agent to Server within the execution of a Job needs to be authenticated with an Open Id Connect ClientId/Secret pair, linked to a Profile.

Create a profile

Here, we focus on creating one profile, used by the Job and every Task of the Job.

Conf/Profile AgentJob.xml
...
<Profile Identifier="AgentSynchro" DisplayName_L1="Agent Synchro" />...

As the Principle of Least Privilege states, NETWRIX strongly recommends that you create a Profile to be used during the Synchronization jobs which will be different from the one used during the Provisioning job. This contributes to separating access rights.
The same principle applied even more rigorously would make Usercube create one profile per Task. It isn't necessary as most Synchronization tasks require the same permissions.

Grant synchronization access rights to the profile

For an Agent to launch server-side Tasks from the Job via the Usercube-Invoke-Job tool, the profile linked to these tasks and used by the tool should be authorized to execute said tasks.

Server-side Tasks for a simple Synchronization job usually are:

Prepare-Synchronization
Synchronization

Required permissions are:

View Tasks

/Jobs/Task/Query

Progress Report

/Jobs/JobInstance/Query
/Jobs/JobInstance/Update
/Jobs/TaskInstance/Query
/Jobs/TaskInstance/update

Synchronization and Prepare-Synchronization

/Connectors/Connector/Query
/Connectors/SynchronizeSession

Granting access can be done via the Synchronization AccessControlRules scaffolding and the JobViewAccessControlRules scaffolding.

The following examples (or similar) should be written to Conf/Profile AgentSychro.xml.

This example entitles the administrator profile to run any synchronization job:
Conf/Profile AgentSychro.xml
...
<SynchronizationAccessControlRules Profile="AgentSynchro"/><JobViewAccessControlRules Profile="AgentSynchro"/>...

Grant end-users permissions to run jobs from the UI

In addition, for end-users to be able to launch a job from the UI, they must be assigned a profile with the following access rights:

/Jobs/RunJob/Launch

This can be done via the JobExecutionAccessControlRules scaffolding.

Example

Conf/Profile AgentSychro.xml
...
<JobExecutionAccessControlRules Profile="AgentProfileForSynchro"/>...

Declare usable ClientId/Secret pairs in the configuration

An Agent's Profile is associated with a ClientId/Secret pair used by the Agent to authenticate to the Server.

Usable ClientId/Secret pairs are written to the database from the xml configuration using the <OpenIdClient> xml element.

It is strongly recommended that you write the <OpenIdClient> xml element to a new or existing OpenIdClients.xml file in the configuration root folder.

The ClientId/Secret pair hence created must be associated with the profile created or updated in the previous step, via the Profile attribute.

Example

The following example creates a ClientId/Secret pair to be used by the Agent to authenticate to the Server and complete Jobs. The secret is hashed with the Usercube-New-OpenIDSecret tool.

Conf/OpenIdClients.xml
...
<OpenIdClient Identifier="Job" HashedSecret="K7gNU3sdo+Op8wNhqoVWhr5v6s1xYv72ol/pe/Unols=" DisplayName_L1="ClientId for Jobs" DisplayName_L2="ClientId pour les jobs" Profile="Administrator" />
...

Set up the Agent to use ClientId/Secret pairs

The ClientId/Secret pairs that the Agent may use are written to the Agent's appsettings.agent technical configuration set.

The ClientId of such ClientId/Secret pairs can then be used as a value in a Task OpenIdClient attribute.

Pairs written in the OpenIdClient section may be used by Tasks.

The Job itself uses the DefaultOpenIdClient value.

This example sets the "Job/secret" pair to be used by tasks and jobs:

appsettings.agent.json
 {
    ...
    "OpenId":{
        "OpenIdClients": {
            "Job": "secret"
         },
         "DefaultOpenIdClient": "Job"
    }
 }

Job launch

Scheduling the job execution can rely either on Usercube's scheduler or an external scheduler.

With Usercube's scheduler

Use the Job CronTabExpression attribute.

This example uses Usercube's scheduler to execute the CyberArk_Synchronize_Complete_Manually job every fifteen minutes:

Conf/SCIMCyberArk/SCIM CyberArk Jobs.xml
<Job Identifier="CyberArk_Synchronize_Complete_Manually" CronTabExpression="*/15 * * * *" DisplayName_L1="01: CyberArk - Synchronization Complete (manually)" DisplayName_L2="00: CyberArk - Synchronisation Complete (manuelle)" Agent="Local">  ...
</Job>

For more details about checking Crontab expressions, see the crontab.guru website.

With an external scheduler

An external scheduler would rely on the Usercube-Invoke-Job tool.

Example

The following command can be scheduled. It executes the CyberArk_Synchronize_Complete_Manually using the "Job/secret" authentication pair to connect to the Usercube Server at http://identitymanager.contoso.com.

./identitymanager-Invoke-Job.exe -j "CyberArk_Synchronize_Complete_Manually" --api-secret secret --api-client-id Job --api-url "http://identitymanager.contoso.com"

Validation

Deploy configuration

The configuration is written to the database using the Deploy Configuration tool.

Test

The Synchronization job should be found in the UI, under the Job Execution menu, with the name input in the Job's DisplayName_Li attribute.

From there, it can be launched and debugged (if needed).

After execution, CyberArk SCIM Objects resources should be in the UR_Resources table of the SQL Server database.

Prerequisites​

External system configuration​

Usercube configuration​

Connect to the target CyberArk instance​

Input credentials​

Set exported objects, exported attributes and export files​

Choose objects to export​

Filtering​

Example​

Set up export files​

Example​

Build the Connector​

Declare a connector​

Build the entity model​

Write entity types​

Example​

Example​

Write entity associations​

Example​

Create mapping​

Write the entity type mapping​

Example​

Write the entity association mapping​

Example​

Users/CyberArk_Group​

Groups/CyberArk_User​

Display​

Navigation​

Parent menu item​

Example​

Child menu item​

Example​

Configuration​

Display entity type​

Example​

Display table​

Example​

Internal display name​

Example​

Permissions​

Example​

Jobs​

Construction​

Components​

Example​

Permissions​

Create a profile​

Grant synchronization access rights to the profile​

Grant end-users permissions to run jobs from the UI​

Example​

Declare usable ClientId/Secret pairs in the configuration​

Example​

Set up the Agent to use ClientId/Secret pairs​

Job launch​

With Usercube's scheduler​

With an external scheduler​

Example​

Validation​

Deploy configuration​

Test​

Prerequisites

External system configuration

Usercube configuration

Connect to the target CyberArk instance

Input credentials

Set exported objects, exported attributes and export files

Choose objects to export

Filtering

Example

Set up export files

Example

Build the Connector

Declare a connector

Build the entity model

Write entity types

Example

Example

Write entity associations

Example

Create mapping

Write the entity type mapping

Example

Write the entity association mapping

Example

Users/CyberArk_Group

Groups/CyberArk_User

Display

Navigation

Parent menu item

Example

Child menu item

Example

Configuration

Display entity type

Example

Display table

Example

Internal display name

Example

Permissions

Example

Jobs

Construction

Components

Example

Permissions

Create a profile

Grant synchronization access rights to the profile

Grant end-users permissions to run jobs from the UI

Example

Declare usable ClientId/Secret pairs in the configuration

Example

Set up the Agent to use ClientId/Secret pairs

Job launch

With Usercube's scheduler

With an external scheduler

Example

Validation

Deploy configuration

Test
