Run the Banking Demo Application

This guide shows how to set up and run the Banking demo application.

Banking Application Description​

The Banking application is a demo application that represents a web based external system. The Banking application contains:

  • A main page.

  • A list of users, accessible by clicking on Users at the top of the page. It is possible to add a user by clicking on Create New User.

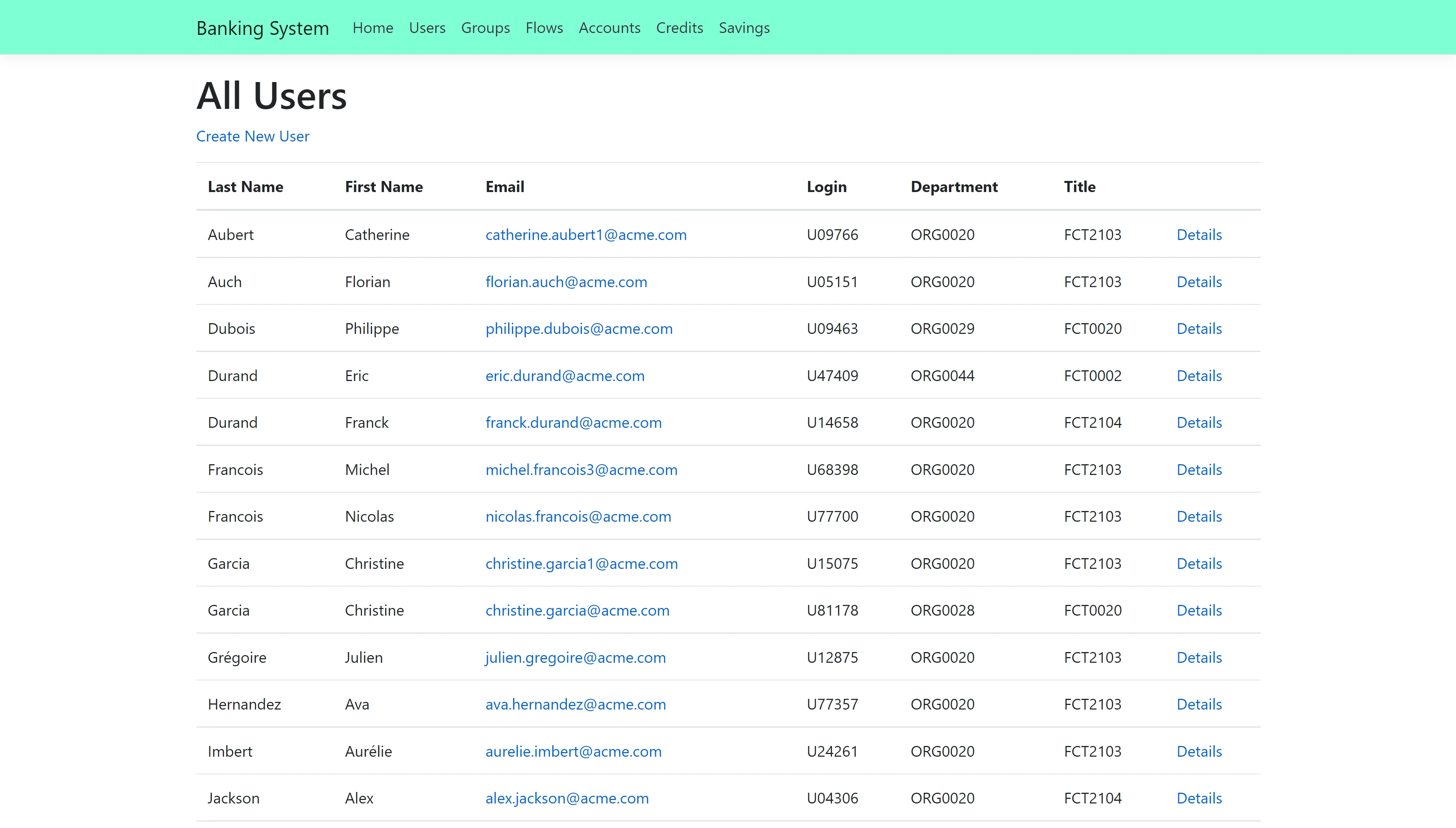

    Users list

  • A list of groups, accessible by clicking on Groups at the top of the page. Clicking on Details on a group shows the users belonging to that group.

  • A user's details page for each user, accessible by clicking on Details on a user in the users list.

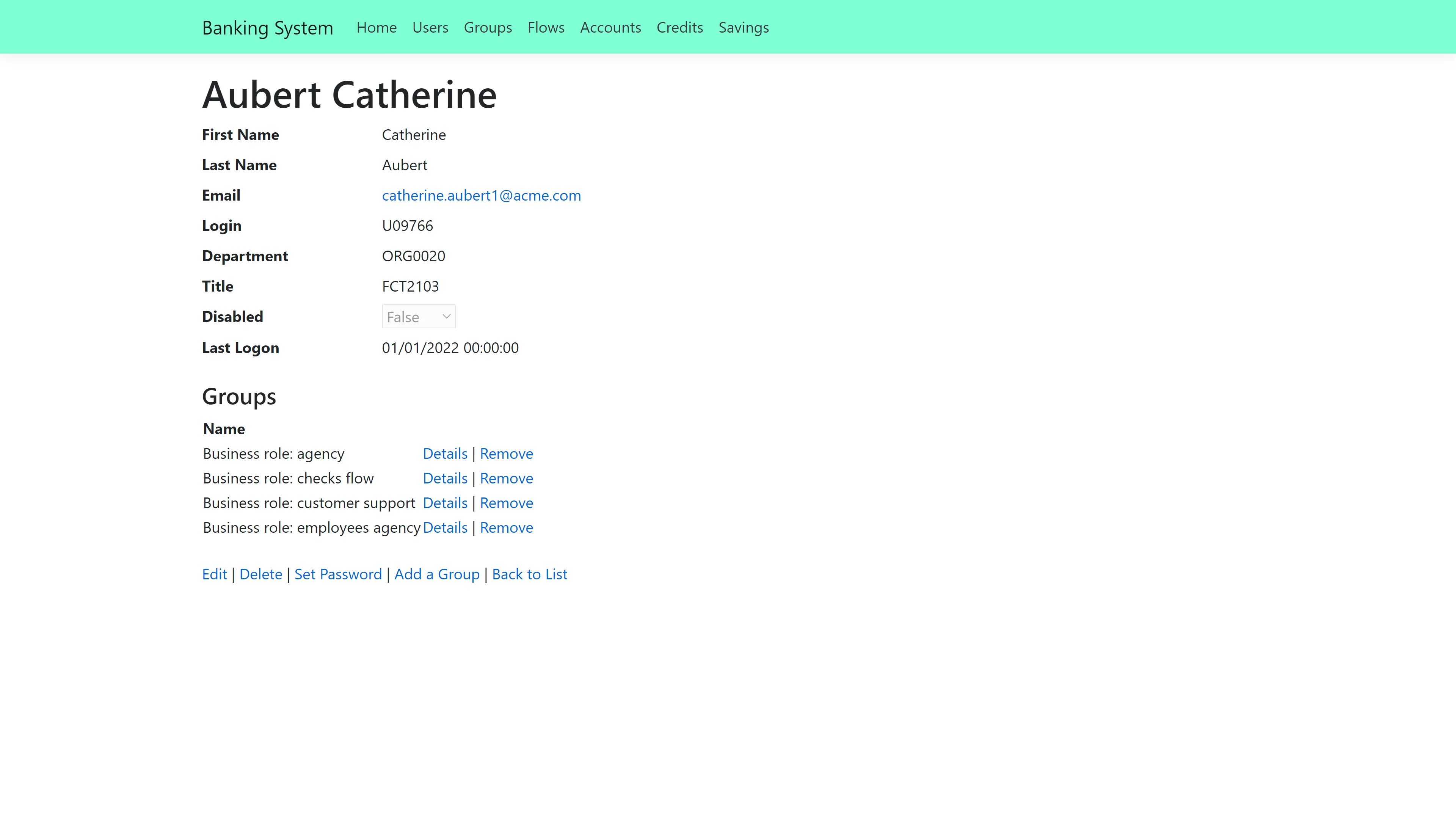

    User details

The most interesting part of the Banking application is a user's page. On a user's page, it is possible to:

  • Edit the user's information
  • Delete the user
  • Add the user to a group
  • Remove the user from a group
  • Set the user's password

The Banking application uses a database named BankingSystem as a data source. The changes made to a user are applied to the database, and will be saved.

Running the Banking Application​

The Banking Application is part of the Usercube SDK, and comes with prefilled sources. To run the Banking application:

  • Download the Usercube SDK.
  • Download the Usercube runtime.
  • Create a database named BankingSystem.
  • Go to the Runtime folder.
  • Run ./identitymanager-FillBankingDatabase.exe --connection-string {connection string} --sources-path {sources path} --banking-sql-path {banking sql path}, replacing {connection string} with the BankingSystem database connection string, {sources path} with the path to SDK/DemoApps/Sources, and {banking sql path} with the path to SDK/DemoApps/Banking.
  • Go to the SDK/DemoApps/Banking folder.
  • Run ./Banking.exe in a command prompt.
  • In a web browser, enter the URL localhost:5000.

The Banking application is running, and the web browser is on the Banking home page.

To set the Banking application to another port, run ./Banking.exe --urls http://localhost:{port number}. To access the application, enter the URL localhost:{port number} in a web browser.

Some ports are not recognized by web browsers, or may already be used. Choose a port wisely.
