Creating WMI Filters

To create the Windows Management Instrumentation (WMI) filters, follow these steps:

Step 1 – Open the Group Policy Management console, expand Domains and then the domain tree;

Group Policy Management Window

Step 2 – Right-click WMI Filters and select New – this will open the New WMI Filter window;

New Windows Management Instrumentation Filter Window

Step 3 – On the New WMI Filter window, add entries for 32-bit and 64-bit WMI filters by providing the name, description, and queries;

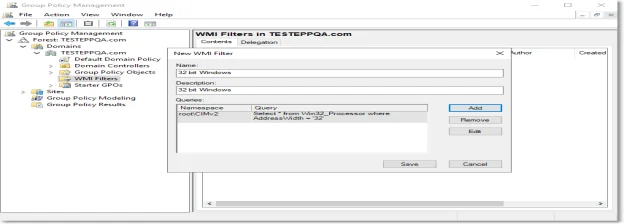

32-bit WMI Filters:

32-bit Windows Management Instrumentation Filters Wizard

64-bit WMI Filters:

64-bit Windows Management Instrumentation Filters

Step 4 – The new filters will be displayed in the WMI Filters folder.

Newly Created Windows Management Instrumentation Filters

Selecting the 32-bit and 64-bit operating systems:

  • 32-bit Operating System: Select * from Win32_Processor where AddressWidth = '32'
  • 64-bit Operating System: Select * from Win32_Processor where AddressWidth = '64'

You can add the following queries to target certain oeprating systems and/or type of computers:

  • Workstation: Select * from WIN32_OperatingSystem where ProductType=1
  • Domain Controller: Select * from WIN32_OperatingSystem where ProductType=2
  • Server: Select * from WIN32_OperatingSystem where ProductType=3
  • Windows XP: Select * from WIN32_OperatingSystem where Version='5.1.2600' and ProductType=1
  • Windows Vista: Select * from WIN32_OperatingSystem where Version='6.0.6002' and ProductType=1
  • Windows 7: Select * from WIN32_OperatingSystem where Version='6.1.7600' and ProductType=1
  • Windows 8: SELECT * FROM Win32_OperatingSystem WHERE Version LIKE "6.2%" AND ProductType="1"
  • Windows 8.1: SELECT * FROM Win32_OperatingSystem WHERE Version LIKE "6.3%" AND ProductType="1"
  • Windows 10: SELECT * FROM Win32_OperatingSystem WHERE Version LIKE "10%" AND ProductType="1"
  • Windows Server 2003: Select * from WIN32_OperatingSystem where Version='5.2.3790' and ProductType>1
  • Windows Server 2008: Select * from WIN32_OperatingSystem where Version='6.0.6002' and ProductType>1
  • Windows 2008 R2: Select * from WIN32_OperatingSystem where Version='6.1.7600' and ProductType>1
  • Window Server 2012: SELECT * FROM Win32_OperatingSystem WHERE Version LIKE "6.2%" AND ProductType="2"
  • Windows Server 2012R2: SELECT * FROM Win32_OperatingSystem WHERE Version LIKE "6.3%" AND ProductType="2"
  • Windows Server 2016: SELECT * FROM Win32_OperatingSystem WHERE Version LIKE "10.0%" AND ProductType="2"
  • Windows Server 2019: SELECT * FROM Win32_OperatingSystem WHERE BuildNumber >= 17763 AND (ProductType="3" OR ProductType="2")
