Agent

The Endpoint Protector Agent enforces the Rights and Settings received from the Endpoint Protector Server on the protected endpoints (Windows, Mac, and Linux).

You can download the Endpoint Protector Agent directly from the Endpoint Protector UI. For detailed information about downloading the Endpoint Protector Agent, refer to the Client Software topic.

note

You can use tools like Active Directory or JAMF to deploy the Endpoint Protector Agent in large networks.

note

Starting with Endpoint Protector Server version 5.8.0.0, an additional security feature is available to protect the integrity of the Agent. This feature, accessible via Device Control on the Global Settings page, is known as the Tamper Mode setting. It is designed to prevent unauthorized termination or modification of the Endpoint Protector Agent.

note

When enabling Debug logging, deploying a fresh installation, or during upgrade processes where critical drivers/services (such as DPI, browser plugins, or Outlook add-ins) must be reloaded, it is recommended to restart the operating system. This mandatory first step in troubleshooting ensures that all dependencies are properly initialized."

Agent install parameters

To improve the Endpoint Protector installation process, use the Endpoint Protector tool that allows you to run installation-related actions, identify your current Linux distribution, and view Endpoint Protector Release Notes.

Use the following commands:

• i - install
• u - uninstall
• rn - release notes
• l - distribution list

Optional CLI commands for installers

Windows

You can also apply manual proxy settings using CLI commands:

Example:

msiexec.exe /i "C:\Work\Tools\EPPClientSetup.5.7.1.5_x86_64.msi" /q REBOOT=ReallySuppress RUNNOTIFIER=0 /log "C:\Windows\TEMP\epp-upgrade.log" WSIP="192.168.18.125"  WSPORT="8080"  DEPT_CODE="defdep"  PROXYIP="127.0.0.1" PROXYPORT="80" AUTHUSR="user_name" AUTHPASS="password"

Where:

• PROXY_IP – IP of the proxy
• PROXY_PORT – Port of the proxy
• AUTHUSR – Username (if authentication for proxy is needed)
• AUTHPASS – Password (if authentication for proxy is needed)

You can also use CLI Commands below to install Endpoint Protector Client in specific mode of working.

• WSIP – server address
• WSPORT – server port number
• DEPT_CODE – department code
• IPV6MAPPING – IPV6 Mapping IPv4 addresses
• SUPPRESSRD – suppress FileRead/FileDelete events for NS and Removable devices
• DISABLECAP – disabling loading of CAP drivers (CAP will not work)

note

Starting with the 2511 Clients release, the install parameters "IPV6MAPPING," "SUPPRESSRD," and "DISABLECAP" will persist during the EPP Client upgrade process.

macOS

note

For macOS, please contact the Netwrix Support team to obtain the latest version of the installer script, which allows customization of installation parameters.

Linux

For Linux, you can only use CLI arguments in the options to bypass proxy settings.sh file. To do so, follow these steps:

Step 1 – Access the installation folder, open a Terminal, and run the following command:

cd pathToLinuxClientFolder

Step 2 – To run commands as root, run the following command and type your password.

sudo su

Step 3 – Open the options.sh configuration file with the following command:

gedit options.sh

Step 4 – In the configuration file, you will view the following fields for the proxy setup:

#EPPCLIENT_HTTPS_PROXY=

#export EPPCLIENT_HTTPS_PROXY

Step 5 – Remove the # before each entry to apply the proxy setups.

Step 6 – For the first proxy setup, EPPCLIENT_HTTPS_PROXY, add the proxy server information in the address:port:user:password format.

Example: EPPCLIENT_HTTPS_PROXY=address:port:user:password

Step 7 – Save the changes, and then run the installation without having a VPN connection:

bash install.sh

Additional CLI commands for Linux in specific mode:

• #EPPCLIENT_SUPRESSRW - suppress FileRead/FileDelete events for NS and Removable devices
• #EPPCLIENT_DISABLECAP - disabling loading of CAP drivers (CAP will not work)

Bypass Proxy Settings

You have the ability to bypass proxy settings for all operating systems.

Windows and macOS

Endpoint Protector Wizard Installer

Select the option to Use Manual Proxy Settings from the Endpoint Protector Wizard installer and then provide the following information:

• Proxy IP – IP of the proxy server
• Proxy Port – Port of the proxy
• Select the Use authentication checkbox
• Username – add proxy server username
• Password – add proxy server password

Agent Installation

For Windows and Mac, your input in installing the Endpoint Protector Agent is minimal. The Installation folder and Server information are already pre-configured, and downloadable from the Endpoint Protector Server.

note

For Linux installation instructions, read the readmeLinux.txt file available under the Read this before installing link.

note

You can also install the Agent from a repository for Endpoint Protector Linux Agents starting with version 1.4.0.4., as described in the topic below.

The following are several examples of supported distributions:

• Ubuntu 14.04+
• Mint 18.X
• CentOS 7.x
• Fedora 29
• OpenSUSE 42.2 and 42.3

Installation on macOS with Deep Packet Inspection and VPN Traffic Intercept Active

Follow the steps to install on macOS with Deep Packet Inspection and VPN Traffic Intercept active.

Step 1 – Open the Endpoint Protector Server.

Step 2 – Go to the System configuration section, select Client Software and then download the macOS Endpoint Protector Agent.

Step 3 – Decompress the downloaded file.

Step 4 – Open the .pkg file and follow the installation steps and give the requested permissions.

Step 5 – After the installation is complete, go to System Preferences > Security & Privacy > Privacy tab > Full Disk Access. Search for Endpoint Protector Client, select the checkbox, and then save the changes.

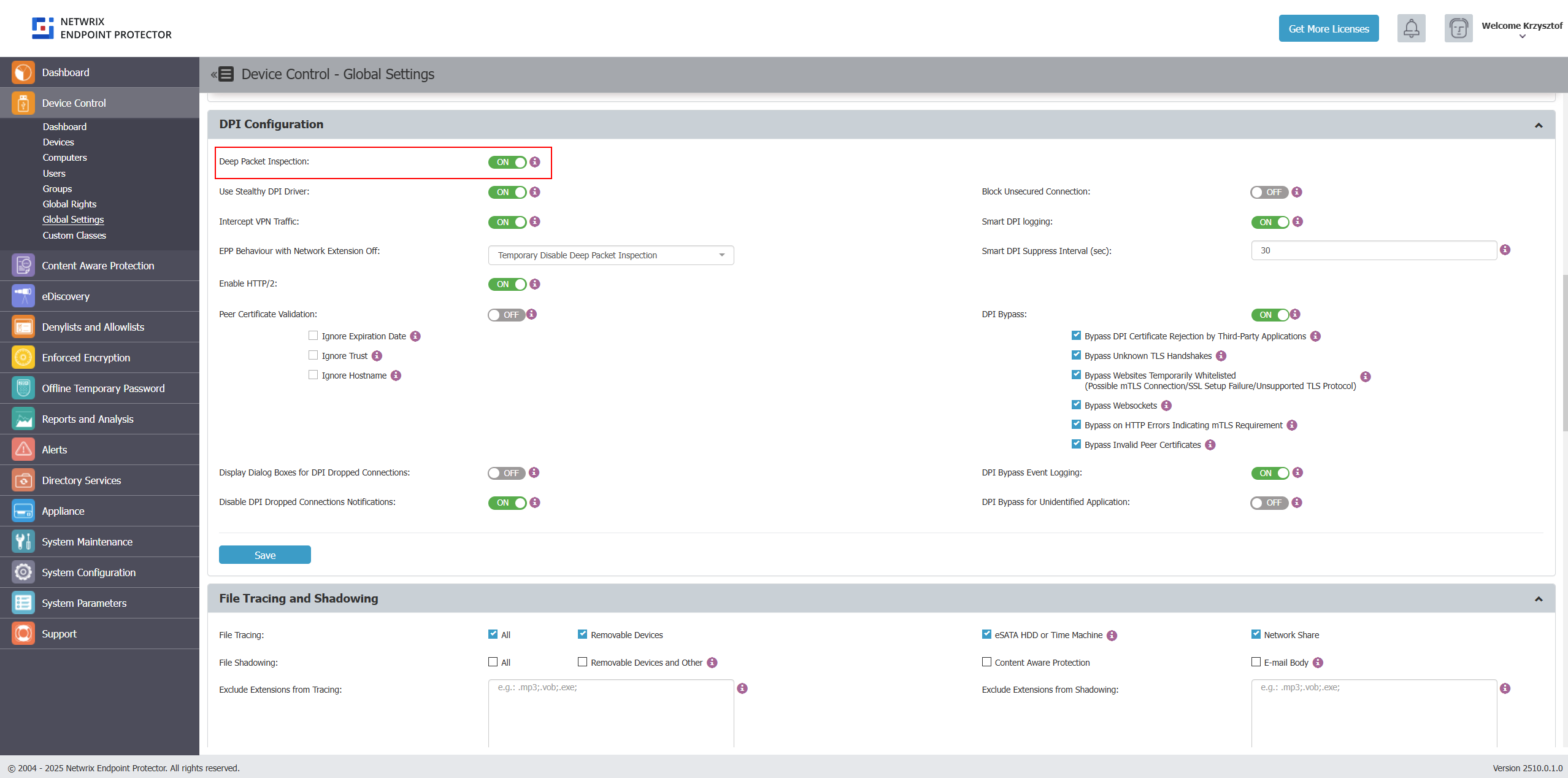

Step 6 – Open the Endpoint Protector Server and activate Deep Packet Inspection by navigating to Device Control > Users/Computer/Group/Global Settings > Manage Settings > Endpoint Protector Client > Deep Packet Inspection.

Step 7 – Go to the System Configuration section, then System Settings > Deep Packet Inspection Certificate, and download the CA Certificate.

Step 8 – Open the Keychain Access application from your macOS and select System.

Step 9 – Decompress the downloaded ClientCerts file.

Step 10 – Select cacert.pem file and drag and drop it on System > Keychain Access.

Step 11 – Double-click the X on the newly added certificate and on the Trust section, select Always Trust.

Step 12 – Save the changes.

Step 13 – Activate Intercept VPN Traffic.

Step 14 – Select one option for EPP behavior when network extension is disabled.

• Temporarily Disable Deep Packet Inspection – this option will temporary disable Deep Packet Inspection
• Block Internet Access – this option will end the Internet connection until the end-user approves the Endpoint Protector Proxy Configuration once the computer is rebooted.

Step 15 – Save the changes.

Step 16 – The following pop-up will be displayed informing the end-user that a System Extension is blocked and needs to be allowed.

Step 17 – Go to System Preferences > Security and Privacy > select the General tab and allow the Endpoint Protector Client Extension.

Step 18 – Allow the Endpoint Protector Proxy Configuration from the pop-up window.

At this point, the macOS Endpoint Protector Client installation is completed.

note

If EPPNotifier is not visible or notifications do not display after the installation or upgrade of the Endpoint Protector Client on macOS, please resolve this issue by restarting your machine. In situations where the Endpoint Protector Client is installed and then uninstalled on macOS, you may still see EPPNotifier in the Notification settings. To remove it from the list, simply right-click and select "Reset notifications."

For more information about Deep Packet Inspection and configurable options, please visit the dedicated documentation section for DPI.

Debian Based Distributions

While the installation process is similar, each distribution and version have their own particularities.

The following are several examples of supported distributions:

• Ubuntu 14.04
• Ubuntu 15.04
• Ubuntu 16.04
• Ubuntu 17.04
• Ubuntu 18.04
• Ubuntu 19.04
• Ubuntu 20.04
• Ubuntu 21.04
• Ubuntu 21.10
• Ubuntu 22.04
• LinuxMint
• Debian

RedHat based distributions

While the installation process is similar, each distribution and version have their own particularities.

The following are several examples of supported distributions:

• CentOS 7.x
• RedHat 8.x
• Fedora 32, 33, 34, 35
• AWS Linux 2

• OpenSuse 15.2
• SUSE 15+
• SLED Linux Enterprise Server 15 SP1
• SLED Linux Enterprise Server 15 SP2
• SLED Linux Enterprise Server 15 SP3

Setting the Server IP

For all RedHat-based distributions, you need to follow an additional step after executing the above commands in order to set the Endpoint Protector Server IP.

Based on each distribution, follow the corresponding method:

The Windows Subsystem for Linux

The Windows Subsystem for Linux (WSL) allows you to run native Linux distributions directly within your Windows environment. However, due to its nature, the Endpoint Protector Client cannot be directly installed as an application within WSL.

While direct installation is not possible, you can still manage and control the usage of WSL applications through the Application Denylist feature in Endpoint Protector. This allows you to define specific applications or processes associated with WSL that you want to restrict and monitor.

Follow the steps to use use Denylists to control WSL applications.

Step 1 – Navigate to the Denylists and Allowlists section within the Endpoint Protector Console.

Step 2 – Create a new Denylist entry.

Step 3 – In the Application Name field, specify the WSL application you want to control. This could be:

• wsl * – This wildcard entry will match all WSL applications.
• wsl.exe – This entry will specifically target the wsl.exe executable.
• wsl.exe --help – This entry will target the specific command wsl.exe --help.
• wsl --list– This entry will target the wsl --list command.

note

Endpoint Protector Client cannot directly control the usage of WSL Bash command-line tools on Windows.
