Configure Cisco Meraki Devices
To configure Cisco Meraki devices, configure the Syslog server for each of your networks.
Netwrix recommends assigning a unique identificator to each Cisco Meraki device; otherwise, the product may count them as a single anonymous device.
Follow the steps to configure the Syslog server.
Step 1 – Sign in to Cisco Meraki Dashboard.

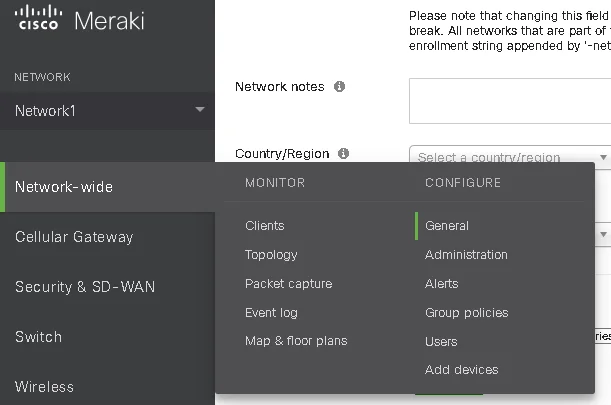

Step 2 – Navigate to Network wide > Configure > General.
Step 3 – Locate the Reporting section and click Add a syslog server.
Step 4 – In the dialog that opens, complete the following fields:
| Option | Description |
|---|---|
| Server IP | Provide the IP address of the computer that hosts your Netwrix Auditor Server. |
| Port | Provide the port configured in your monitoring plan for Network Devices (514 by default). See theNetwork Devices topic for additional information. |
| Roles | Select the following roles: - Appliance event log - Switch event log - Wireless event log |
Cisco Meraki Devices Configuration
If you need any additional information about the Cisco Meraki devices configuration, refer to Cisco documentation: Syslog Server Overview and Configuration.
Review a full list of object types Netwrix Auditor can collect on Cisco Meraki network devices.
| Object type | Actions | Event ID |
|---|---|---|
| --- | --- | --- |
| --- | --- | --- |
| Cisco Meraki | ||
| Authentication | - Successful Logon | - 716038 - 113012 - client_vpn_connect - authentication on - type=8021x_auth - type=8021x_eap_success - type=splash_auth - type=wpa_auth |
| - Failed Logon | - 113020 - 113015 - type=8021x_eap_failure - type=disassociation | |
| Session | - Successful Logon | - 716001 - 713228 - 722033 - 722022 - 725001 - 725002 - 725003 |
| - Failed Logon | - 716039 - 722056 - 725006 - 725014 | |
| - Logoff | - 716002 - 713259 - 302014 - 302304 - 302016 - 722023 - 725007 - 722030 - 722031 - 113019 - client_vpn_disconnect - type=8021x_deauth - type=8021x_client_deauth - type=wpa_deauth | |
| Rule | - Activated | - ids-alerts - security_event ids_alerted - security_event security_filtering_file_scanned - security_event security_filtering_disposition_change - type=device_packet_flood - type=rogue_ssid_detected - type=ssid_spoofing_detected |
| URL | - Read / Failed read | - 716003 - 716004 |
