Microsoft Entra ID

NOTE: Prior to configuring your monitoring plan, please read and complete the instructions in the following topics:

  • Protocols and Ports Required – To ensure successful data collection and activity monitoring configure necessary protocols and ports for inbound and outbound connections

  • Data Collecting Account – Configure data collecting accounts as required to audit your IT systems

  • Microsoft Entra ID – Configure data source as required to be monitored

How to Add Office365 Item​

This instruction shows how to collect audit data from the Office365 organization. See the Configuring Microsoft Entra ID App for Auditing Microsoft Entra ID topic for additional information on how to prepare Microsoft Entra ID app with required permissions. Make sure you have the following at hand:

  • Tenant name
  • Application (client) ID
  • Application secret

Types of data that can be collected by Netwrix Auditor from the Office 365 organization depend on the authentication option you choose.

Follow the steps to configure Microsoft 365 tenant as a monitored item.

Step 1 – On the General page of the item properties, specify Tenant name:

  • If you are going to use Basic authentication, you can proceed to the next step – Tenant name will be filled in automatically after it.

  • NOTE: Basic authentication is no longer possible for Exchange Online. For the already existing tenants it is still possible to use basic authentication for SharePoint Online and Microsoft Entra ID monitoring.

  • If you are going to use Modern authentication, paste the obtained name. See the Using Modern Authentication with Microsoft Entra ID topic for additional information.

Step 2 – Select authentication method that will be used when accessing Microsoft 365 services:

Step 3 – Click the Add button.

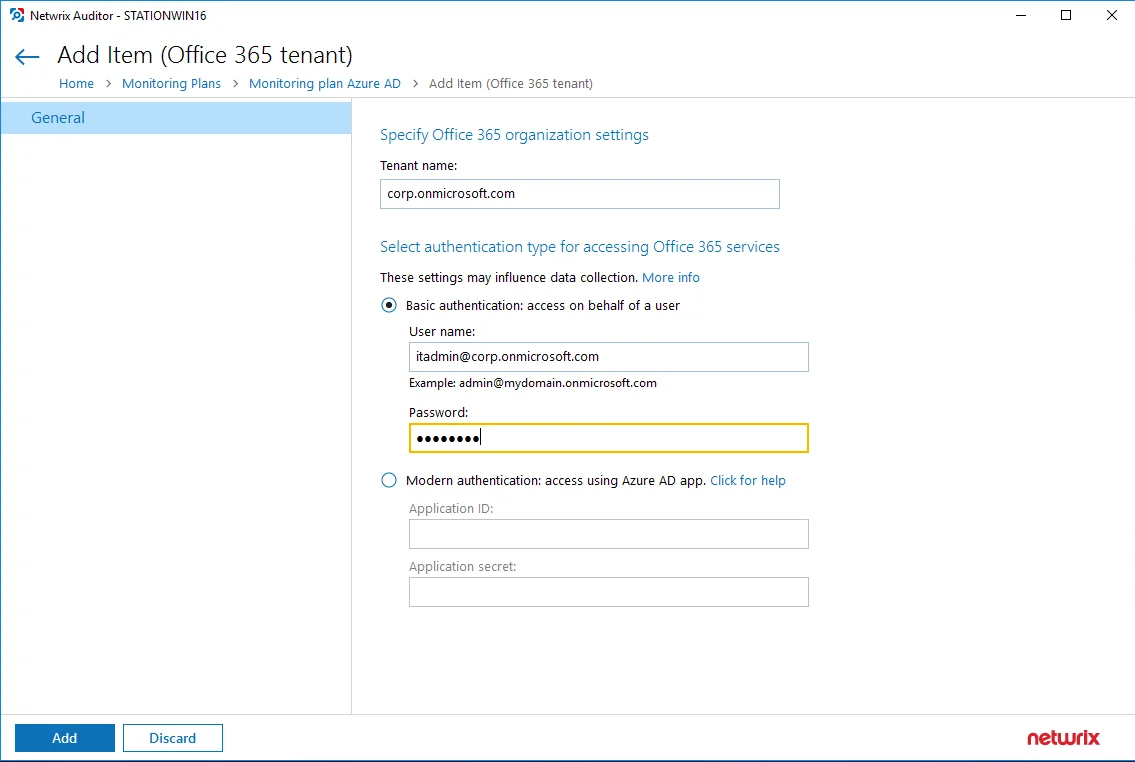

Add Office 365 Item window

You can use a single account to collect audit data for different Microsoft 365 services (Microsoft Entra ID, Exchange Online, SharePoint Online); however, Netwrixrecommends that you specify individual credentials for each of them.

If you plan to collect and report on the audit data for Exchange Online non-owner mailbox access, consider that the value shown in the “Who” field in reports and search results will be displayed in UPN format (unlike the earlier Netwrix Auditor versions). This refers to the following scenarios:

  • All new installations

  • Upgrade from the previous versions if:

    • Modern authentication is selected in the item settings after the upgrade.

      OR

    • Modern authentication has ever been selected in the item settings and reverted back to Basic later

Step 4 – Complete the following fields:

OptionDescription
Monitor this data source and collect activity dataEnable monitoring of the selected data source and configure Auditor to collect and store audit data.
Monitor Microsoft Entra ID logon activitySpecify what types of logon events you want to monitor: successful or failed, performed through Windows and SQL authentication. - Failed SQL and Windows logons - Successful SQL logons - Logoffs - Successful Windows logons
Collect data for state-in-time reportsConfigure Netwrix Auditor to store daily snapshots of your system configuration required for further state-in-time reports generation. See the State–In–Time Reports topic for additional information.

Review your data source settings and click Add to go back to your plan. The newly created data source will appear in the Data source list. As a next step, click Add item to specify an object for monitoring. See the Add Items for Monitoring topic for additional information.
