Agents Tab

The Agents tab is used to deploy activity agents and manage settings. This is the only tab available until an agent is installed.

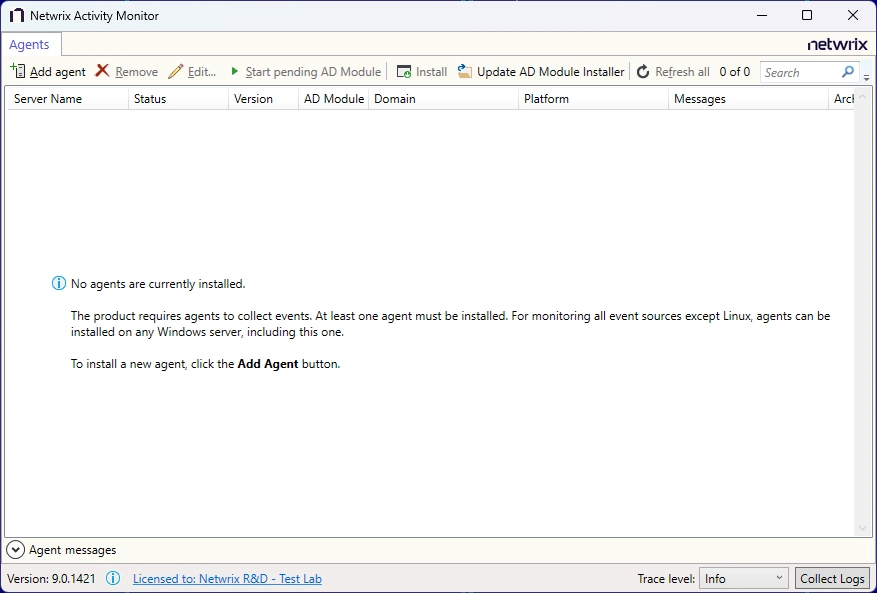

The Agents tab is comprised of a button bar, a table of servers hosting activity agents, and an Agent Messages box. The button bar allows users to take the following actions:

• Add Agent – Opens the Add New Agent(s) window to deploy the activity/AD agent to a single server or to multiple servers at the same time. The following sections provide additional information:

  • Single Activity Agent Deployment
  • Multiple Activity Agents Deployment
  • Active Directory Agent Deployment
  • Linux Agent Deployment

• Remove – Opens the Remove Agents window where users can choose to remove the hosting server from the activity agents table or uninstalling the activity agent from the hosting server before removing the activity agent from the table. See the Remove Agents topic for additional information.

• Edit – Opens the selected server’s Properties window to modify the server name or credentials. See the Agent Properties Window topic for additional information.

• Start pending AD Module – Starts the Active Directory monitoring module, which is part of the Activity Monitor Agent, when the module is in a pending (not yet started) state.

  • Occasionally, a Microsoft Security Bulletin that affects LSASS can interfere with the AD module’s instrumentation, causing LSASS to shut down. The AD module monitors for LSASS process termination shortly after a server reboot. It can be configured to run in Safe Mode to prevent the operating system from loading the AD monitoring module if the versions of the DLLs that the module hooks into have changed since the last restart.

• Install – Deploy or upgrade an activity agent to the selected host

• Upgrade – [When Agent Status is Outdated] Replaces outdated activity agent with current version

• Update AD Module Installer – Allows you to select the newer AD Module installer. A confirmation window then opens and identifies the new installer version. See the Update AD Module Installer topic for additional information.

• Refresh all – Refresh the status of all activity agents

The table of servers hosting activity agents provides the following information:

• Server Name – Name or IP Address of the server hosting an activity agent

• Status – Status of the deployed activity agent(s)

  note

  If the AD agent has been deployed, a status of “outdated” could apply to either the activity agent or the AD agent installed on the domain controller.

• Version – Version of the deployed activity agent

• AD Module – Version of the deployed AD Module, used for Active Directory monitoring

• Domain – Name of the domain

• Messages – Count of the number of error and warning messages for the selected server

• Archive Location – If archiving is enabled for the activity agent, displays the archive file path

• Archive Size – If archiving is enabled for the activity agent, displays the archive size

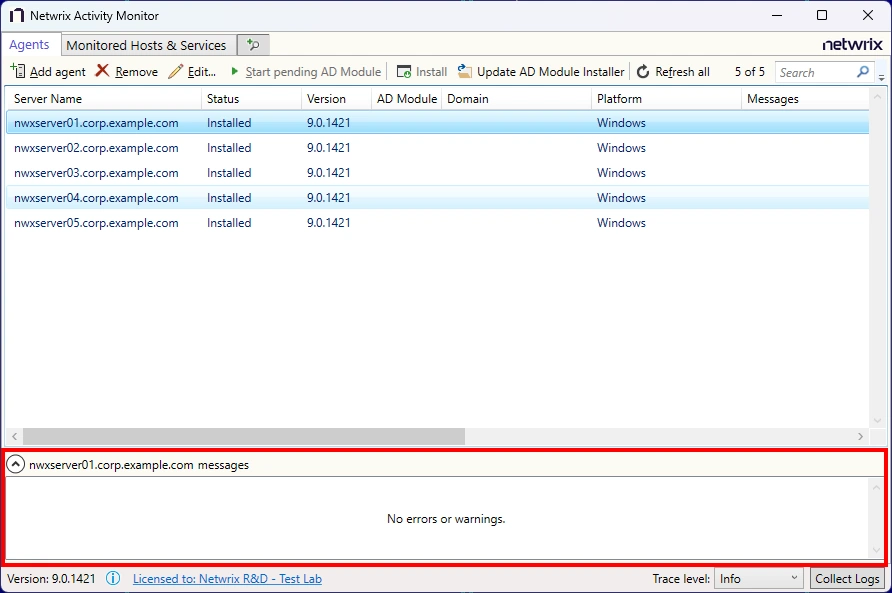

The Agent messages box displays any error or warning messages from the selected activity agent. These messages are related to deployment/installation, communication between the Console and the Activity Agent, and upgrade of an agent.

For additional information on how to deploy agents manually, see the Agent Information topic.
