NetApp FPolicy Options Tab

The NetApp FPolicy Options tab provides options to configure FPolicy server settings for monitoring a NetApp Data ONTAP Cluster-Mode device.

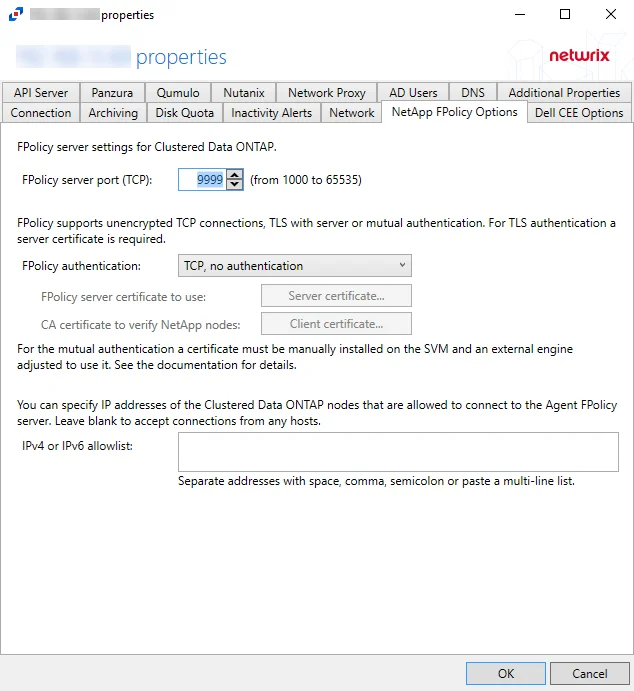

Agent Properties - NetApp FPolicy Options page

The available options are:

  • FPolicy server port (TCP): [number] (from 1000 to 65535) – Enter the FPolicy server port. The default is 9999.

  • FPolicy authentication – Select from the following options in the drop-down list. For TLS server authentication, a Server certificate is required. For TLS, mutual authentication, a Server certificate and Client certificate are required.

    • TCP, no authentication – Default setting, with no server authentication required
    • TLS, server authentication – Click Server certificate to open the Server certificate window and import a certificate
    • TLS, mutual authentication – Click Server certificate to open the Server certificate window and import a certificate, and Client certificate to open the Trusted client or CA certificate window to import a certificate

  • IPv4 or IPv6 whitelist – IP Addresses of the Clustered Data ONTAP nodes, which are allowed to connect to the FPolicy server, can be whitelisted by entering them in the box. IP Addresses should be entered as separate addresses with space, comma, semicolon, or a multi-line list. Leave the box blank to accept connections from any hosts.

Click OK to commit the modifications. Click Cancel to discard the modifications. The Agent Properties window closes.
