SystemInfo Data Collector

The SystemInfo Data Collector extracts information from the target system based on the selected category. The SystemInfo Data Collector is a core component of Access Analyzer, but Access Analyzer preconfigures it within the Windows Solution. While the data collector is available with all Access Analyzer license options, the Windows Solution is only available with a special Access Analyzer license. See the Windows Solution topic for additional information.

Protocols

• Remote Registry
• RPC
• WMI

Ports

• TCP 135-139
• Randomly allocated high TCP ports

Permissions

• Member of the Local Administrators group

SystemInfo Query Configuration

You configure the SystemInfo Data Collector through the System Info Data Collector Wizard, which contains the following wizard pages:

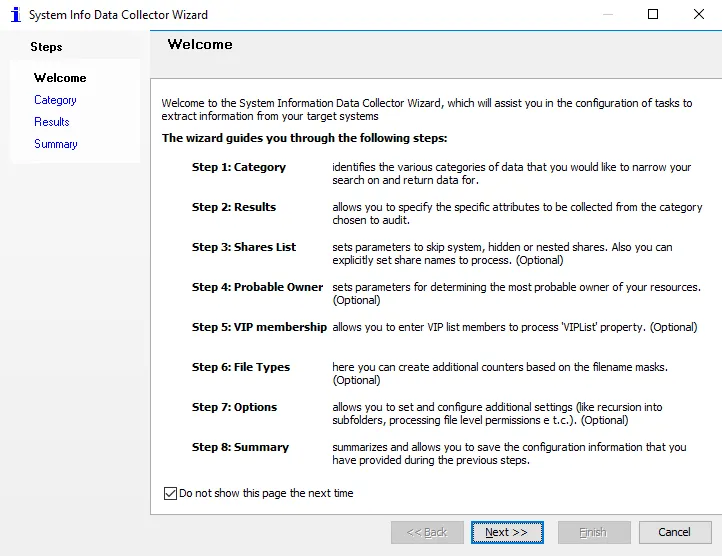

• Welcome
• SystemInfo: Category
• SystemInfo: Results
• SystemInfo: Shares List
• SystemInfo: Probable Owner
• SystemInfo: VIP Membership
• SystemInfo: File Types
• SystemInfo: Options
• SystemInfo: Summary

You can hide the Welcome page by selecting the Don't display this page the next time checkbox when the wizard is open and you save configuration settings.
