Exchange2K Data Collector

The Exchange2K Data Collector extracts configuration details from Exchange organizations for versions 2003 and later. This is a MAPI-based data collector which requires you to enable and configure the Settings > Exchange node. See the Exchange topic for additional information.

Access Analyzer preconfigures the Exchange2K Data Collector within the Exchange Solution. Both this data collector and the solution are available with a special Access Analyzer license. See the Exchange Solution topic for additional information.

Protocols

• LDAP
• MAPI
• PowerShell
• RPC
• WMI

Ports

• TCP 135-139
• Randomly allocated high TCP ports
• TCP 389
• Optional TCP 445

Permissions

• Member of the Exchange Administrator group
• Domain Admin for AD property collection
• Public Folder Management

Exchange2K Query Configuration

Configure the Exchange2K Data Collector through the Exchange 2K+ Data Collector Wizard, which contains the following wizard pages:

• Welcome
• Exchange2K: Category
• Exchange2K: Scope
• Exchange2K: Results
• Exchange2K: MAPI Settings
• Exchange2K: Options
• Exchange2K: Summary

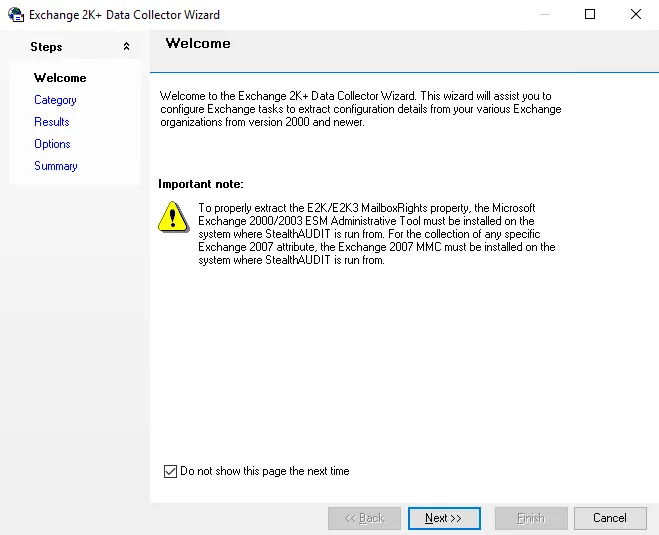

To hide the Welcome page, select the Don't show this page the next time checkbox when the wizard is open and configuration settings are saved.
