CommandLineUtility Data Collector

The CommandLineUtility Data Collector lets you remotely spawn, execute, and extract data provided by a Microsoft native or third-party command line utility. Use it to execute a command line utility and capture its output as Access Analyzer data. This data collector is a core component of Access Analyzer and is available with all Access Analyzer licenses.

Protocols

• Remote Registry
• RPC

Ports

• TCP 135-139
• Randomly allocated high TCP ports

Permissions

• Member of the local Administrators group

CommandLineUtility Query Configuration

The CommandLineUtility Data Collector executes a command line utility and captures the output. You configure it through the Command Line Utility Data Collector Wizard, which contains the following pages:

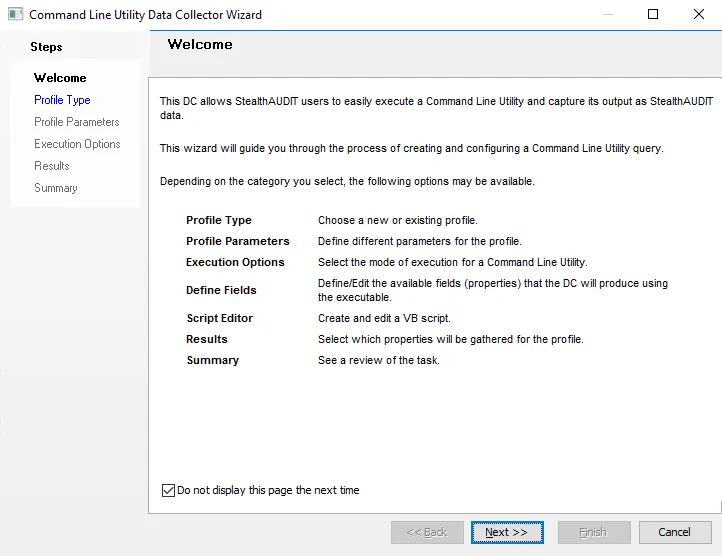

• Welcome
• CLU: Profile Type
• CLU: Profile Parameters
• CLU: Execution Options
• CLU: Define Fields
• CLU: Script Editor
• CLU: Results
• CLU: Summary

To hide the Welcome page, select the Don't display this page the next time checkbox while the wizard is open, then save the configuration settings.
