Box Data Collector

The Box Data Collector audits access, group membership, and content within a Box enterprise.

note

If you use the Box Data Collector in a new job outside of the Box Solution, deselect the Skip Hosts that don't respond to PING option on the job's Properties > Performance tab.

The Box Data Collector has been preconfigured within the Box Solution. Both this data collector and the solution are available with a special Access Analyzer license. See the Box Solution topic for additional information.

Protocols

• HTTP
• HTTPS

Ports

• TCP 80
• TCP 443

Permissions

• Box Enterprise Administrator

Box Query Configuration

Configure the Box Data Collector through the Box Data Collector Wizard. The wizard contains the following pages, which change based on the query category selected:

• Welcome
• Box: Category
• Box: Exclusions Page
• Box: Scope by User Page
• Box: Additional Scoping
• Box: Activity Timeframe Scope
• Box: Activity Operation Scope
• Box: Authenticate
• Box: Results
• Box: Summary

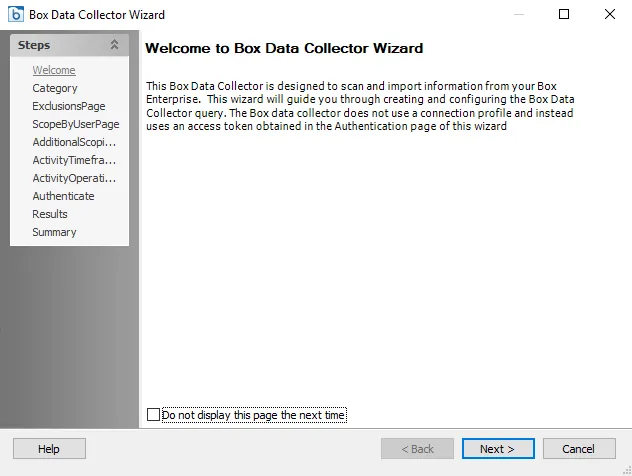

The Welcome page gives an overview of the data collector. To proceed through the pages, click Next or use the Steps navigation pane to open another page in the wizard. Review the introductory and caution information about the Box Data Collector before proceeding.

To hide the Welcome page, check the Don't display this page the next time box while the wizard is open. This saves your configuration settings.
