ActiveDirectory Data Collector

The ActiveDirectory Data Collector audits objects published in Active Directory. The Active Directory Solution includes this data collector preconfigured. Both this data collector and the solution are available with a special Access Analyzer license. See the Active Directory Solution topic for additional information.

Protocols

  • ADSI
  • LDAP
  • RPC

Ports

  • TCP 389/636
  • TCP 135-139
  • Randomly allocated high TCP ports

Permissions

  • Member of the Domain Administrators group

ActiveDirectory Query Configuration​

The ActiveDirectory Data Collector is configured through the Active Directory Data Collector Wizard, which contains the following wizard pages:

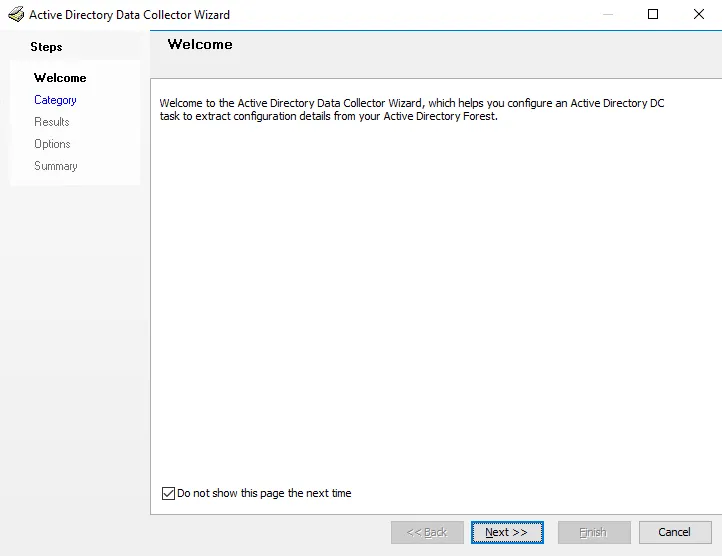

Active Directory Data Collector Wizard Welcome page

To hide the Welcome page, select the Don't display this page the next time checkbox while the wizard is open, then save the configuration settings.
