EX_ServerMetrics Job

The EX_ServerMetrics Job provides visibility into server mail flow statistics, such as, sent, received, journaling, transport, and NDR counts and sizes.

Analysis Tasks for the EX_ServerMetrics Job​

View the analysis tasks by navigating to the Exchange > 1. HUB Metrics > EX_ServerMetrics > Configure node and select Analysis.

warning

Don't modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

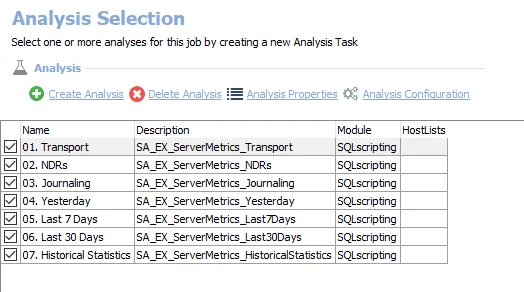

Analysis Tasks for the EX_ServerMetrics Job

The following analysis tasks are selected by default:

  • 1. Transport – Creates the SA_EX_ServerMetrics_Transport table, accessible under the job’s Results node
  • 2. NDRs – Creates the SA_EX_ServerMetrics_NDRs table, accessible under the job’s Results node
  • 3. Journaling – Creates the SA_EX_ServerMetrics_Journaling table, accessible under the job’s Results node
  • 4. Yesterday – Creates the SA_EX_ServerMetrics_Yesterday table, accessible under the job’s Results node
  • 5. Last 7 Days – Creates the SA_EX_ServerMetrics_Last7Days table, accessible under the job’s Results node
  • 6. Last 30 Days – Creates the SA_EX_ServerMetrics_Last30Days table, accessible under the job’s Results node
  • 7. Historical Statistics – Creates the SA_EX_ServerMetrics_HistoricalStatistics table, accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the EX_ServerMetrics Job produces the following pre-configured reports:

ReportDescriptionDefault TagsReport Elements
Journaling (Journaling Traffic)This report summarizes journaling message traffic across the organization.NoneThis report is comprised of two elements:
  • Bar Chart – Displays top servers by journaling messages (last 30 days)
  • Table – Provides details on top servers by journaling messages (last 30 days)
NDRs (Exchange NDRs)This report shows NDR counts broken down by server.NoneThis report is comprised of two elements:
  • Bar Chart – Displays top servers by NDRs (last 30 days)
  • Table – Provides details on top servers by NDRs (last 30 days)
Server Traffic (Top Servers by Traffic)This report summarizes server traffic across the organization for the Last 30 Days.NoneThis report is comprised of two elements:
  • Stacked Bar Chart – Displays top servers by total traffic
  • Table – Provides details top servers by total traffic
Transport (Transport Messages)This report summarizes transport messages across the exchange organization.NoneThis report is comprised of two elements:
  • Bar Chart – Displays top servers by transport messages (last 30 days)
  • Table – Provides details on top servers by transport messages (last 30 days)
