3.OUs > AD_OUPermissions Job

The AD_OUPermissions Job reports on all Active Directory permissions applied to organizational unit objects within the targeted domains.

3.OUs Job Group in the Jobs Tree

The AD_OUPermissions Job is located in the 3.OUs Job Group.

Analysis Tasks for the AD_OUPermissions Job​

Navigate to the Active Directory Permissions Analyzer > 3.OUs > AD_OUPermissions > Configure node and select Analysis to view the analysis tasks.

CAUTION: Do not modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

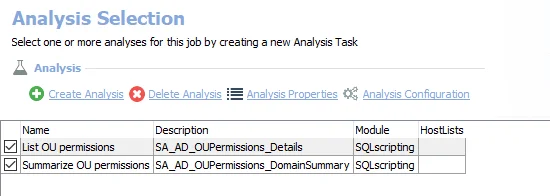

Analysis Tasks for the AD_OUPermissions Job

The default analysis tasks are:

  • List OU permissions – Creates the SA_AD_OUPermissions_Details table accessible under the job’s Results node
  • Summarize OU permissions – Creates an interim processing table in the database for use by downstream analysis and report generation

In addition to the tables and views created by the analysis tasks, the AD_OUPermissions Job produces the following pre-configured report.

ReportDescriptionDefault TagsReport Elements
OU PermissionsThis report highlights instances where permissions are applied to Active Directory organizational units. This information is summarized at the domain and enterprise levels.NoneThis report is comprised of three elements: - Bar Chart – Displays OU permissions by domain - Pie Chart – Displays OU permissions by type - Table – Provides details on OU permissions
