AD_DSRMSettings Job

The AD_DSRMSettings Job provides details on domain controller registry settings for the DSRMAdminLogonBehavior key. If this key is set to 1 or 2, you can use the Directory Services Restore Mode (DSRM) Admin Account to log in to the domain controller even if it has not been started in DSRM, which can present a potential security vulnerability. Additional information on this registry key is available in this Microsoft Document.

Analysis Tasks for the AD_DSRMSettings Job​

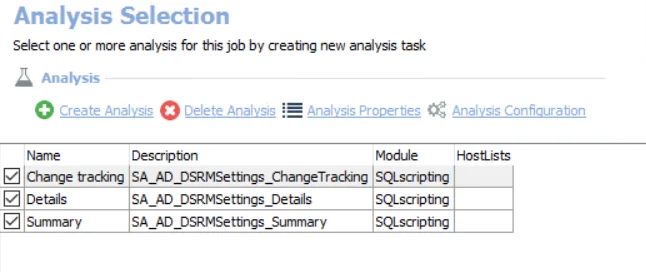

Navigate to the Active Directory > 5.Domains > AD_DSRMSettings > Configure node and select Analysis to view the analysis tasks.

warning

Don't modify or deselect the selected analysis tasks. The analysis tasks are preconfigured for this job.

dsrmsettingsanalysis

The default analysis tasks are:

  • Change tracking – Creates the SA_AD_DSRMSettings_ChangeTracking table accessible under the job’s Results node
  • Details – Creates the SA_AD_DSRMSettings_Details table accessible under the job’s Results node
  • Summary – Creates the SA_AD_DSRMSettings_Summary table accessible under the job’s Results node

In addition to the tables and views created by the analysis tasks, the AD_DSRMSettings Job produces the following pre-configured report:

ReportDescriptionDefault TagsReport Elements
DSRM Admin SecurityThis report highlights domain controller registry settings for the DSRMAdminLogonBehavior key. If this key is set to 1 or 2, you can use the DSRM Admin account to log in to the domain controller even if it has not been started in DSRM. This is a potential vulnerability. See the Microsoft Restartable AD DS Step-by-Step Guide for additional information.NoneThis report is comprised of two elements:
  • Pie Chart – Displays DSRM admin logon  by domain controller
  • Table – Provides details on domain controllers
