CyberArk Integration

For Enterprise Auditor to retrieve service account passwords from the CyberArk Password Vault, complete the following prerequisites:

• Install the Secrets Manager on the Enterprise Auditor Console server. The organization’s Vault administrator can provide the Secrets Manager installation package and most likely needs to be present during the installation to provide credentials for the Secrets Manager installation to complete. See the CyberArk Credential Provider (CP) article for additional information.

• Add an application to CyberArk for the integration with Enterprise Auditor. Then add the Application Id of this application to the GlobalOptions.xml file for Enterprise Auditor. See the Customize CyberArk Application Id topic for additional information. You can lock down the application by providing an OS User, a Path, or a Hash. See the CyberArk Add applications article for additional information.

  • The OS User needs to be the account running Enterprise Auditor. This could be the account used to launch the Enterprise Auditor application or an account used as the Schedule Service Account within Enterprise Auditor. More than one OS User can be added.

  • The Path should be a local path to the StealthAUDIT.exe file. The path should end with the file name: …\StealthAUDIT.exe.

  • Generate the Hash using the AimGetAppInfo tool in the …\CyberArk\ApplicationPasswordProvider\Utils folder on the server where Secrets Manager is installed. Run AimGetAppInfo in an Administrator Command Prompt using the following command:

    ..\CyberArk\ApplicationPasswordProvider\Utils\NETAimGetAppInfo.exe GetHash /AppExecutablesPattern <DevInstall>\PrivateAssemblies\Stealthbits.StealthAUDIT.Console.dll

    info

    Pipe the output hash value to a file to copy and paste it to the CyberArk application.

    See the CyberArk Generate an application hash value article for additional information.



    Add the generated hash value in the Authentication tab of the Application Details page for the CyberArk Application.



  • Add the machine name for the Enterprise Auditor console to the Allowed Machines list for the CyberArk application

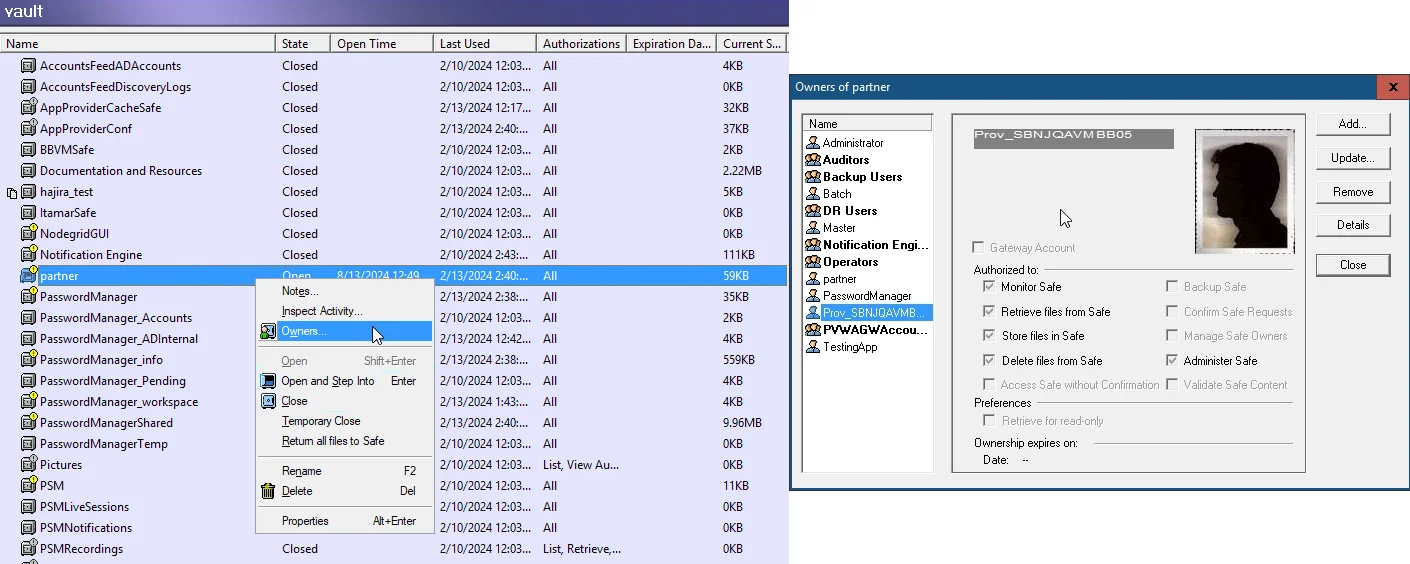

• After the Secrets Manager installation completes and you create the Enterprise Auditor application, give the necessary CyberArk accounts access to the Safes that store the Enterprise Auditor service accounts. This includes the account automatically created during the Secrets Manager installation, as well as the account automatically created when you create the application.



  • The account created during the AIM installation is under the naming convention Prov_[COMPUTERNAME], where COMPUTERNAME is the name of the computer on which AIM is installed. Give this account Retrieve accounts, List accounts, and View Safe Members rights on the Safes you want.
  • The account created during the application creation has the same name as the application itself; give it Retrieve accounts rights on the Safes you want

Customize CyberArk Application Id

Configure Enterprise Auditor with the Application id value of the application you created within CyberArk for the integration. You do this in the GlobalOptions.xml file within the Enterprise Auditor installation directory. The default location is …\STEALTHbits\StealthAUDIT\.

To customize the CyberArk Application Id within Enterprise Auditor:

Step 1 – Navigate to the GlobalOptions.xml file. Open it with a text editor, for example Notepad.

warning

Ensure Enterprise Auditor is closed when modifying this file.

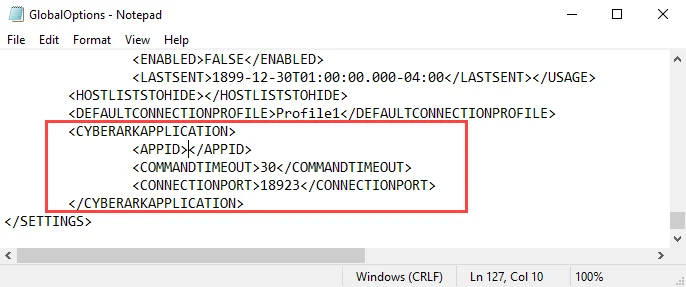

Step 2 – Find the <CYBERARKAPPLICATION> section of the GlobalOptions.xml file. Add the Application Id of the configured CyberArk application for the integration in the <APPID> tag. If required, customize the Command Timeout and Connection Port properties.

<CYBERARKAPPLICATION>
    <APPID>CyberArkApplicationID</APPID>
    <COMMANDTIMEOUT>30</COMMANDTIMEOUT>
    <CONNECTIONPORT>18923</CONNECTIONPORT>
</CYBERARKAPPLICATION>

• AppId – The name of the CyberArk application

• CommandTimeout – Set to the suggested default of 30

• ConnectionPort – This is a configurable option found during the installation of the CyberArk Credential Provider. After installation, it is in the configuration file located in the installation folder.

  See the CyberArk TCP parameters article for additional information.

Step 3 – Save and close the file.

Enterprise Auditor now uses the CyberArk Application Id identified in the XML string.

User Credentials Window

In Enterprise Auditor, the CyberArk option for Password Storage is available on the User Credentials window when configuring an Active Directory Account or Local Windows Account.

The credential information supplied in the User Credentials window must be an exact match to what is in CyberArk as the privileged account for which it is linked. It is case-sensitive.

If you use a Connection Profile with a Local Windows Account credential using CyberArk password storage to target multiple hosts, the local credential on each host needs to have the exact same username and password combination.

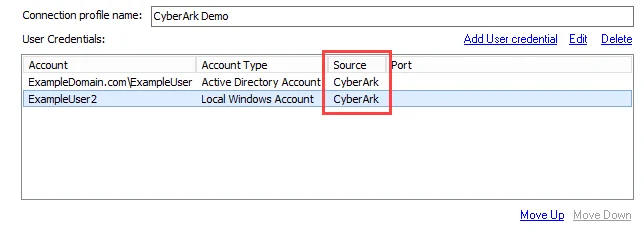

The Connection view displays CyberArk in the Source column of the User Credentials list for the selected Connection Profile.

Active Directory Account

Match the User Credentials window settings in Enterprise Auditor with the privilege account properties in CyberArk. These values are case-sensitive, and must be an exact match.

The following table shows the values from your CyberArk configuration to populate in the User Credentials window:

Enterprise Auditor	CyberArk Property	CyberArk Description	Example Value
Domain	Address	Domain address	ExampleDomain.com
User name	Username	Privilege account	ExampleUser
Safe	Safe	Vault managing the privileged accounts	Test
Folder	Folder	Folder within Safe	Root

Local Windows Account

Match the User Credentials window settings in Enterprise Auditor with the privilege account properties in CyberArk. These values are case-sensitive, and must be an exact match. The Enterprise Auditor Domain value is <HOST> and the CyberArk Address property value is the server address.

The following table shows the values from your CyberArk configuration to populate in the User Credentials window:

Enterprise Auditor	CyberArk Property	CyberArk Description	Example Value
User name	Username	Privilege account	ExampleUser2
Safe	Safe	Vault managing the privileged accounts	Test
Folder	Folder	Folder within Safe	Root

info

Only use one Local Windows Account credential with CyberArk password storage in a Connection Profile. As part of the Enterprise Auditor to CyberArk integration, the Enterprise Auditor stops the job immediately if the query from Enterprise Auditor to CyberArk for the credential fails. Therefore, Enterprise Auditor wouldn't query a second credential within the Connection Profile.
