DiskInfo Data Collector

The DiskInfo Data Collector provides enumeration of disks and their associated properties. When targeting the local host for a DiskInfo query, it is necessary to select the Systems Default option as the connection profile. This data collector is a core component of Enterprise Auditor and is available with all Enterprise Auditor licenses.

Protocols

  • RPC
  • WMI

Ports

  • TCP 135
  • Randomly allocated high TCP ports

Permissions

  • Member of the local Administrators group

DiskInfo Query Configuration​

The DiskInfo Data Collector is configured through the Disk Info wizard, which contains the following wizard pages:

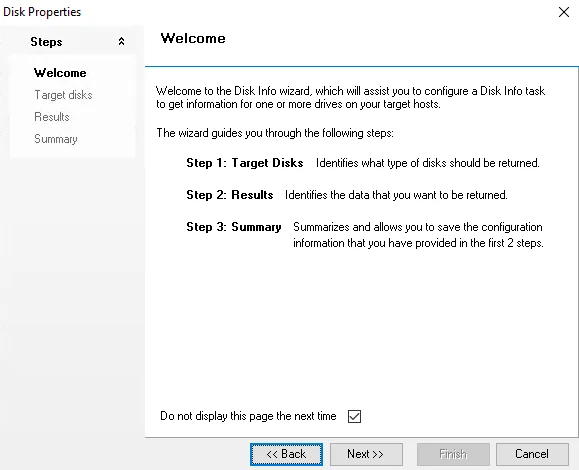

Disk Info wizard Welcome page

The Welcome page can be hidden by selecting the Do not display this page the next time checkbox when the wizard is open and configuration settings are saved.
