ActiveDirectory Data Collector

The ActiveDirectory Data Collector audits objects published in Active Directory. Netwrix preconfigures it within the Active Directory Solution. Both this data collector and the solution are available with a special Enterprise Auditor license. See the Active Directory Solution topic for additional information.

Protocols

• ADSI
• LDAP
• RPC

Ports

• TCP 389/636
• TCP 135-139
• Randomly allocated high TCP ports

Permissions

• Member of the Domain Administrators group

ActiveDirectory Query Configuration

Configure the ActiveDirectory Data Collector through the Active Directory Data Collector Wizard, which contains the following wizard pages:

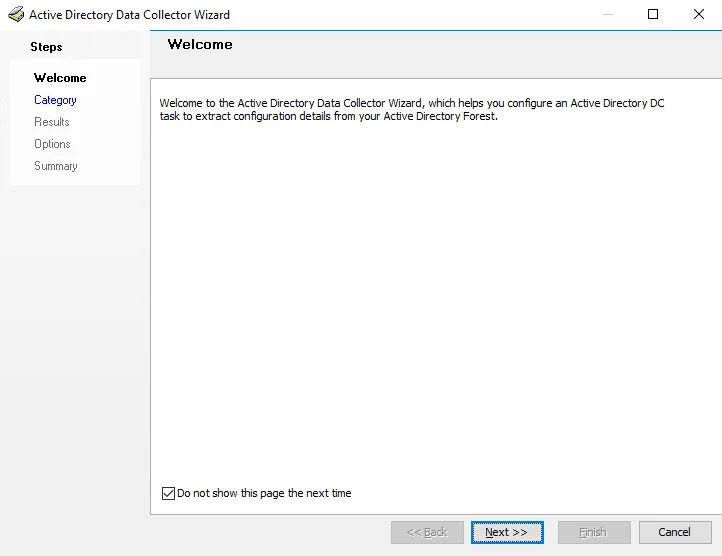

• Welcome
• ActiveDirectory: Category
• ActiveDirectory: Directory Scope
• ActiveDirectory: Results
• ActiveDirectory: Options
• ActiveDirectory: Summary

To hide the Welcome page, select the Don't display this page the next time checkbox while the wizard is open, and save the configuration settings.
